TMM5B0B30M21SA

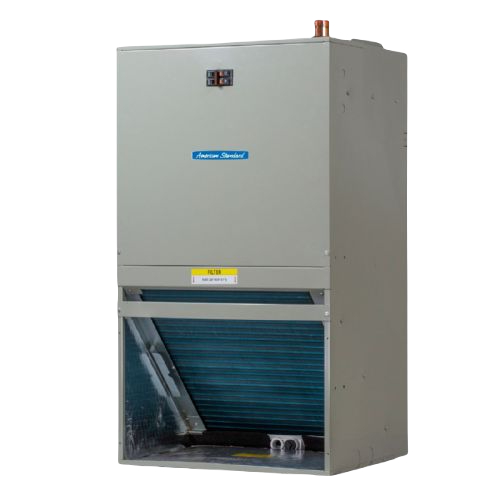

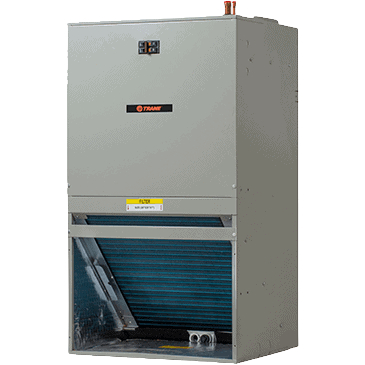

Wall, Stud, or Over the Water Heater Mount Air Handler, 208-230/1/60, 4-Way, 30K BTUH Nom Cap, CTM, 800 Nom CFM, 24V System Control, 22 in W x 19 in D
Login /Create Account to view price and availability.
Export Product Details
Actual Dimension UOM
In
Actual Height
39.5
Actual Length/Depth
19
Actual Weight
97
Actual Weight UOM
lbs
Actual Width
22
Blower Motor Type
ECM
BTU Rating/BTUH (Only one required)
30,000
Cooling Capacity (Tonnage)
30,000 BTUH
Dimensions (Could be separate also)
39.5 x 22 x 19
Efficiency Tier
Mid Efficiency
Liquid Line Size
3/8
Number of Speeds
Variable
Phases
1
Refrigerant Type
R-410A
Series
TMM
Shipping Dimension UOM
IN
Shipping Height
39.5
Shipping Length/Depth
19.0
Shipping Weight
119.0
Shipping Weight UOM
LB
Shipping Width
22.0
Suction Line Size
3/4
Supply Opening Depth
18.75 in.
Supply Opening Width
9.5 in.
Voltage
208-230V
