ORM5488 Superseded

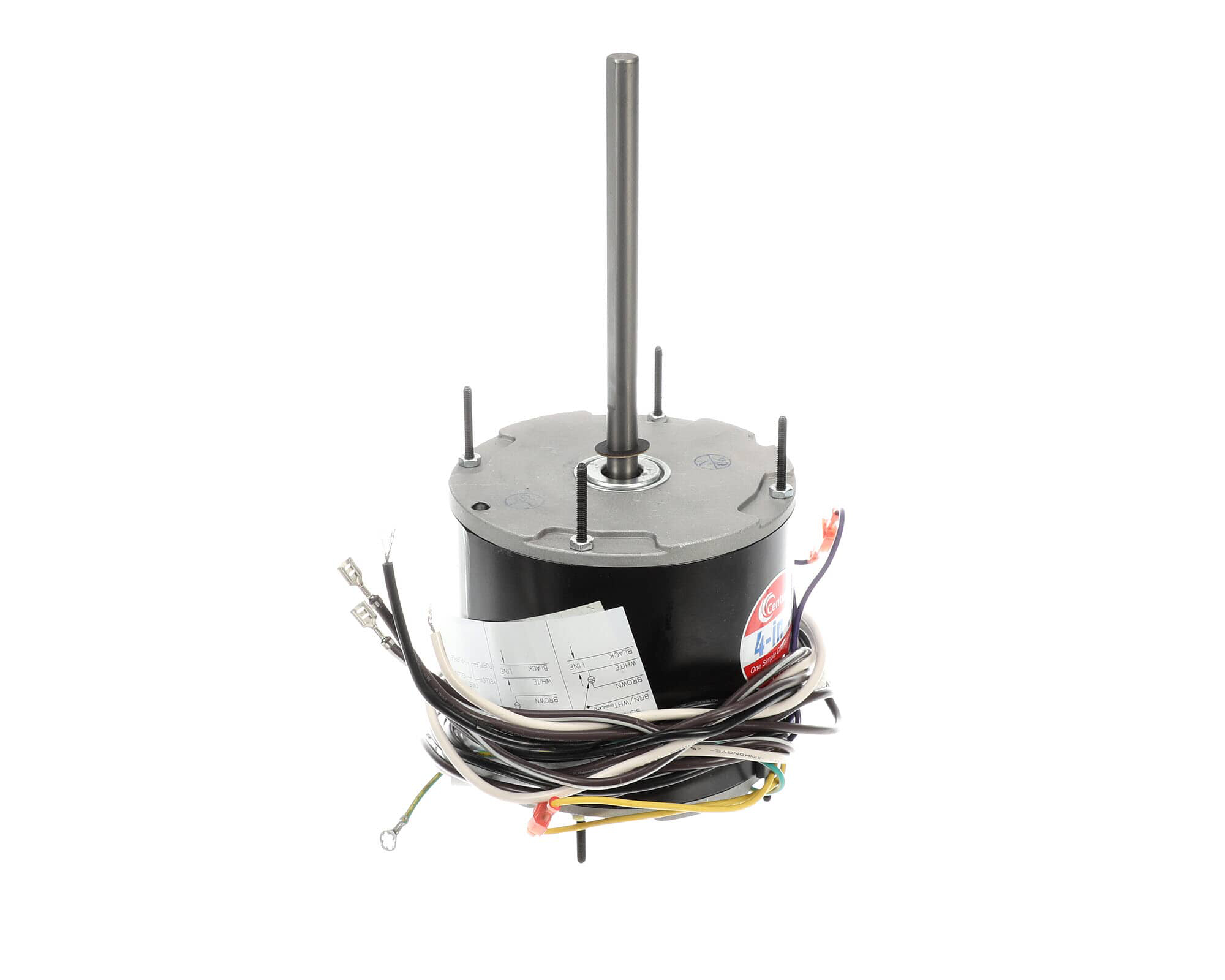

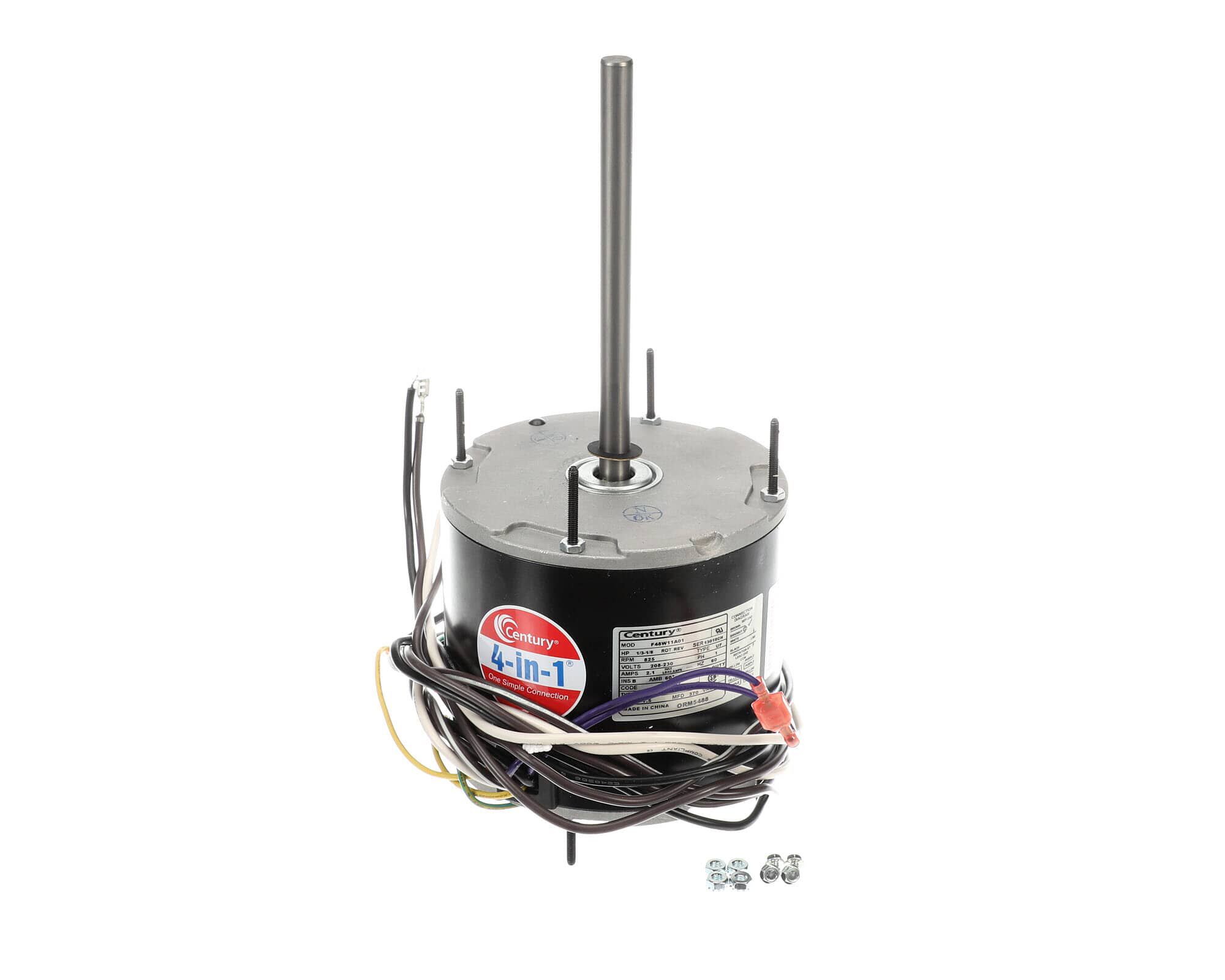

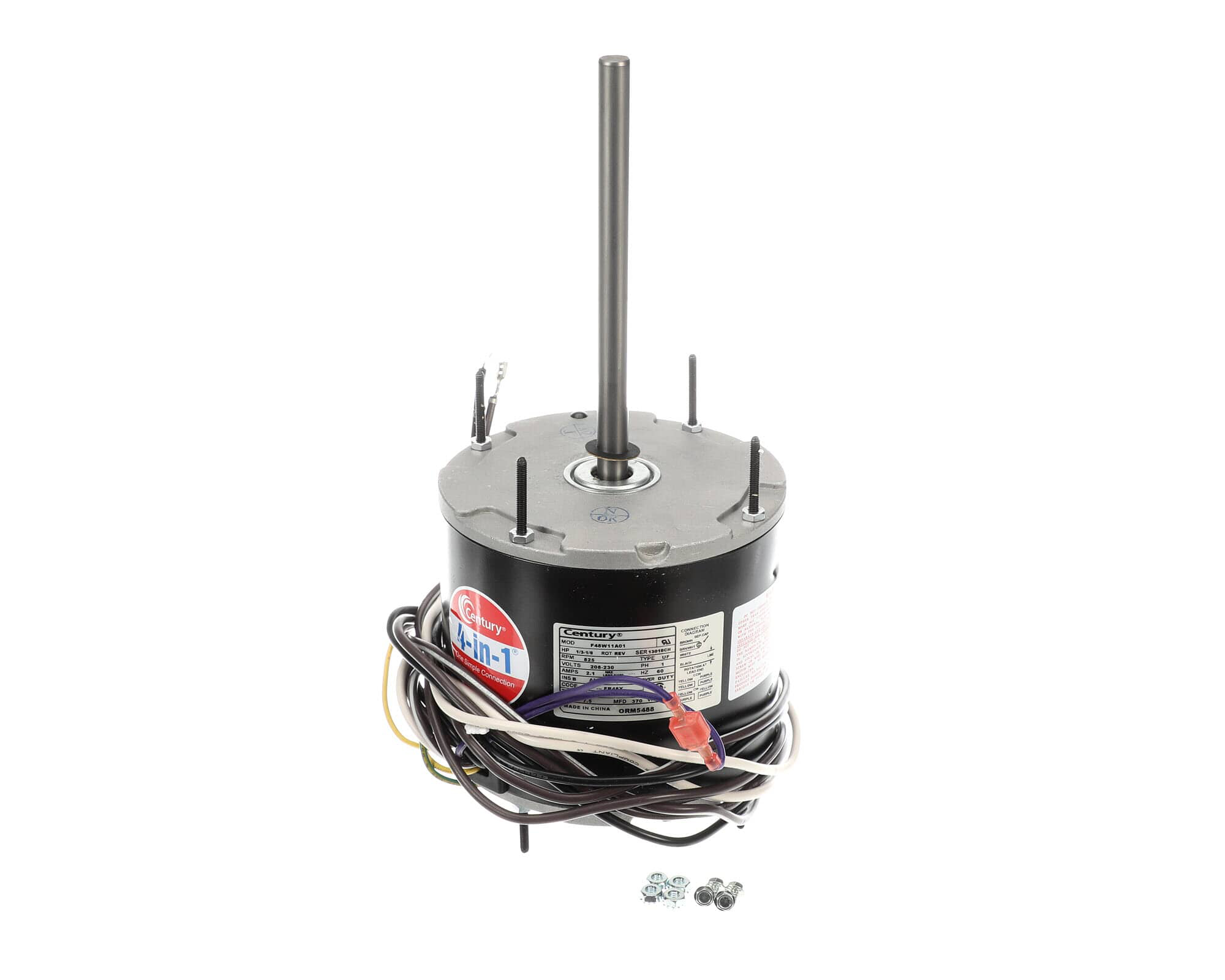

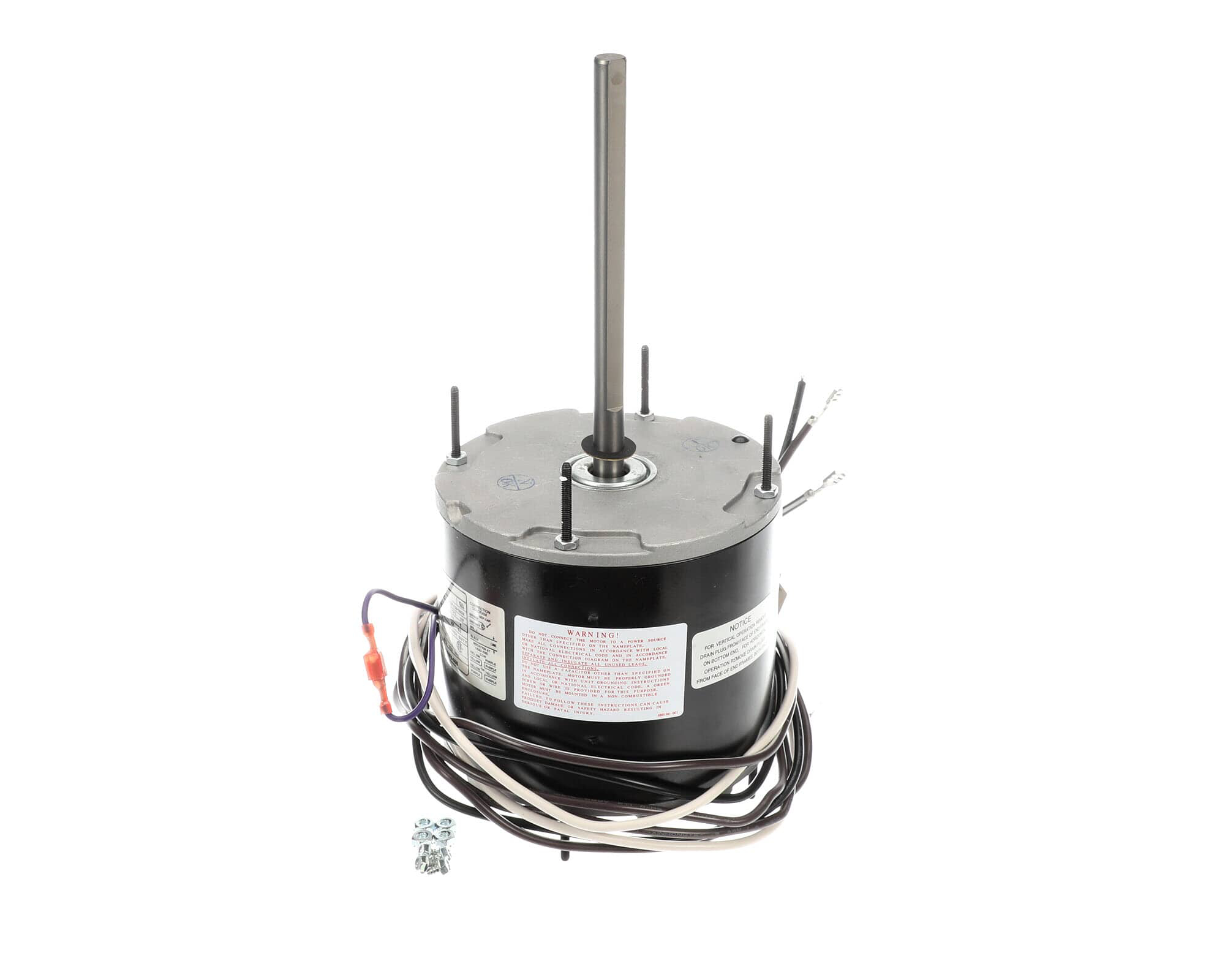

Condenser Fan Motor, 1/8 to 1/3 HP, Single Phase, 208-230V, 825 RPM, 48 Frame, Totally Enclosed Air-Over, Single Speed
Login /Create Account to view price and availability.
Supersessions1 Items
| Items | Description | Notes | Action |
|---|---|---|---|
ORM5488B SKU Number | MOTOR 60C MAX AMBIENT MULTI-HP MOTOR, 1/3-1/8HP, 208-230V, 825RPM, 48FRAME, BALL BEARING | USE UP EXISTING INVENTORY, NO LONGER AVAILABLE; USE ORM5488B; USE UP EXISTING INVENTORY, NO LONGER AVAILABLE | View Product |
Export Product Details
Actual Height
6.81
Actual Length/Depth
13.78
Actual Width
6.41
Brand
Trane
Frame
48Y
HP
1/8 to 1/3
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Type
Belly Band
No. of Speeds
1
Phase
1
Rotation
Reversible
RPM
825
Run Cap MFD
7.5
Shaft Diameter (In)
0.5
Shaft Length (In)
11.36
Shipping Dimension UOM
IN
Shipping Height
7.3
Shipping Length/Depth
14.8
Shipping Weight
7.45
Shipping Weight UOM
LB
Shipping Width
7.1
Speed Type
Single
Sub Brand
Century
Thermal Protector
True
Voltage
208-230V
