MOT18646

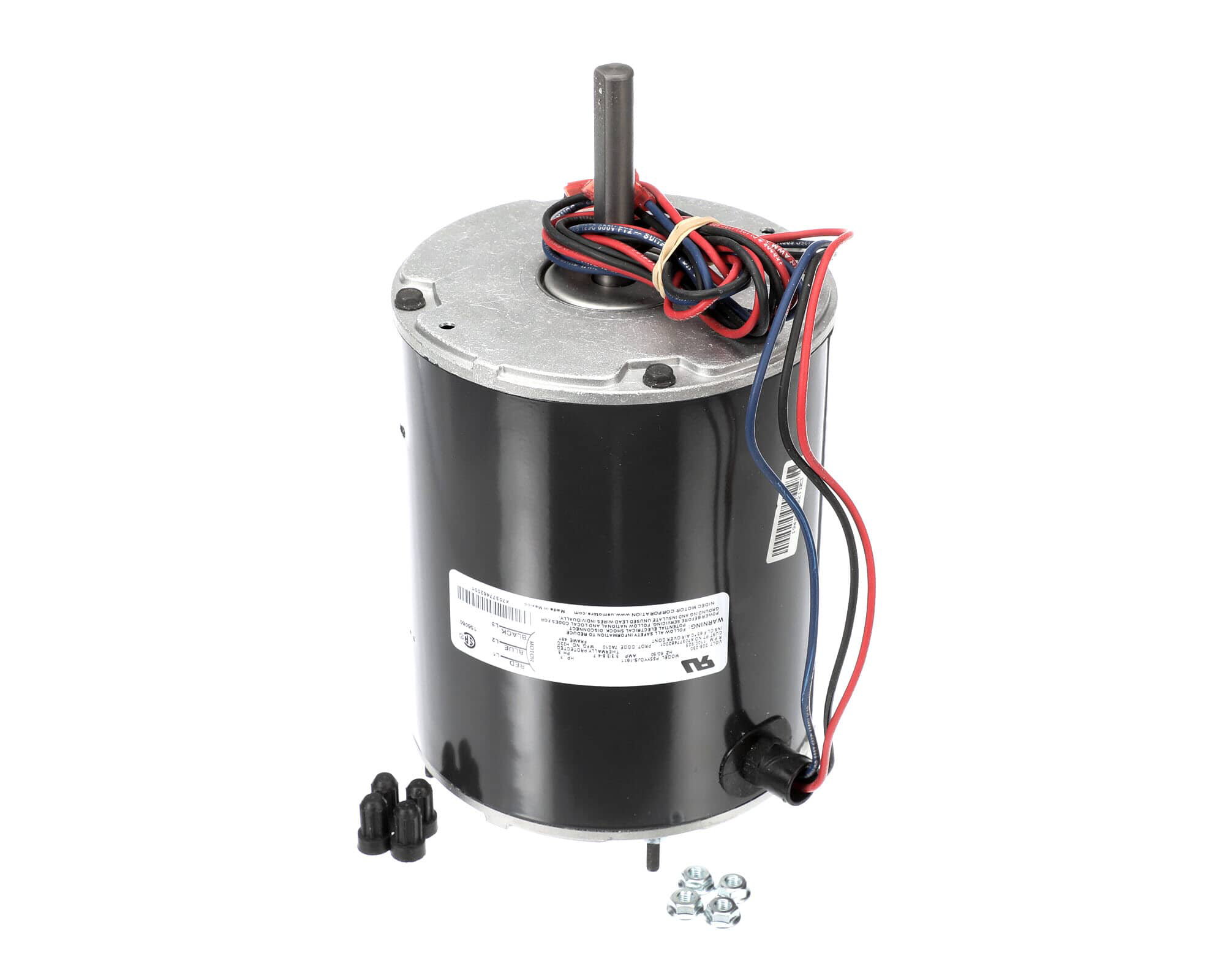

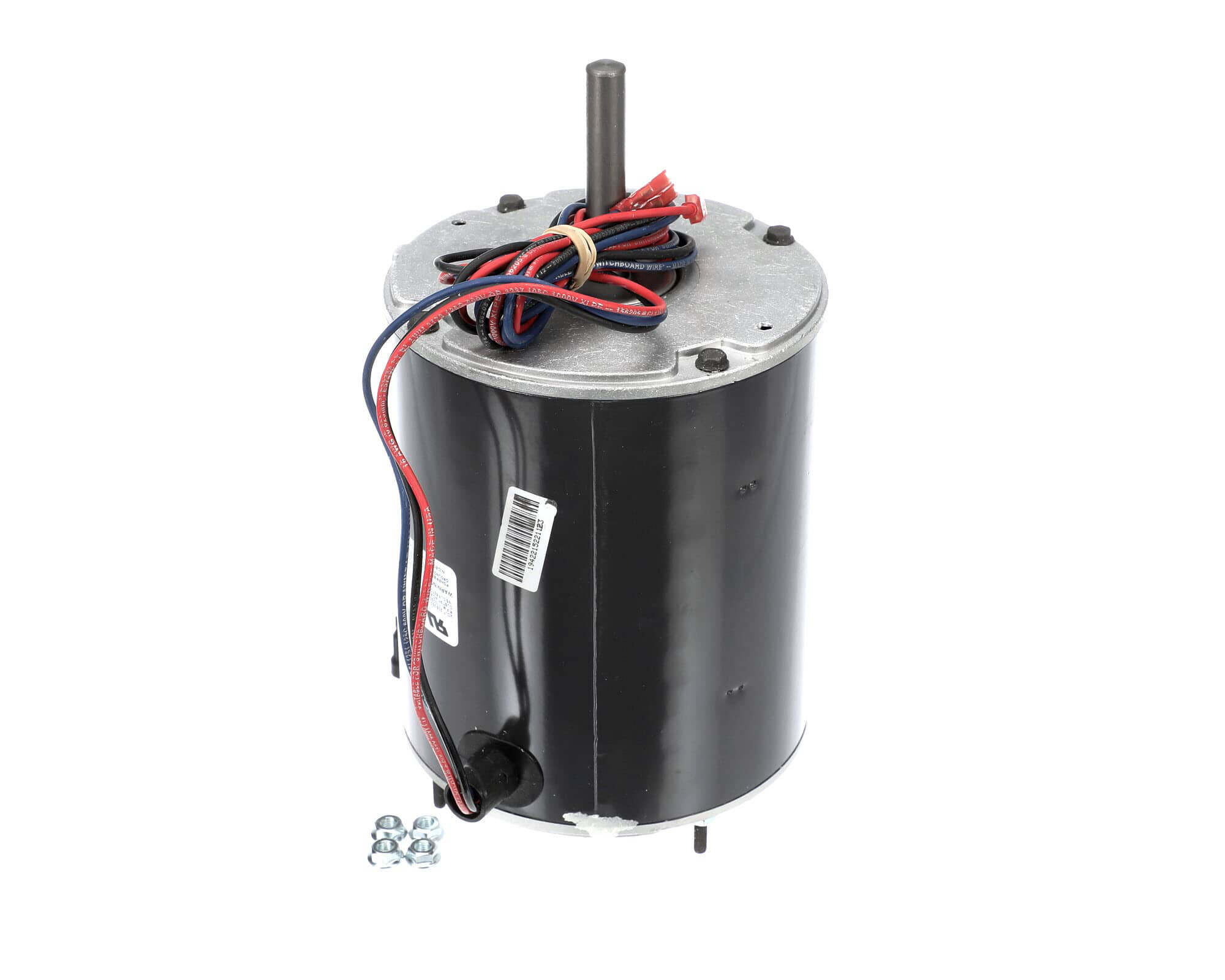

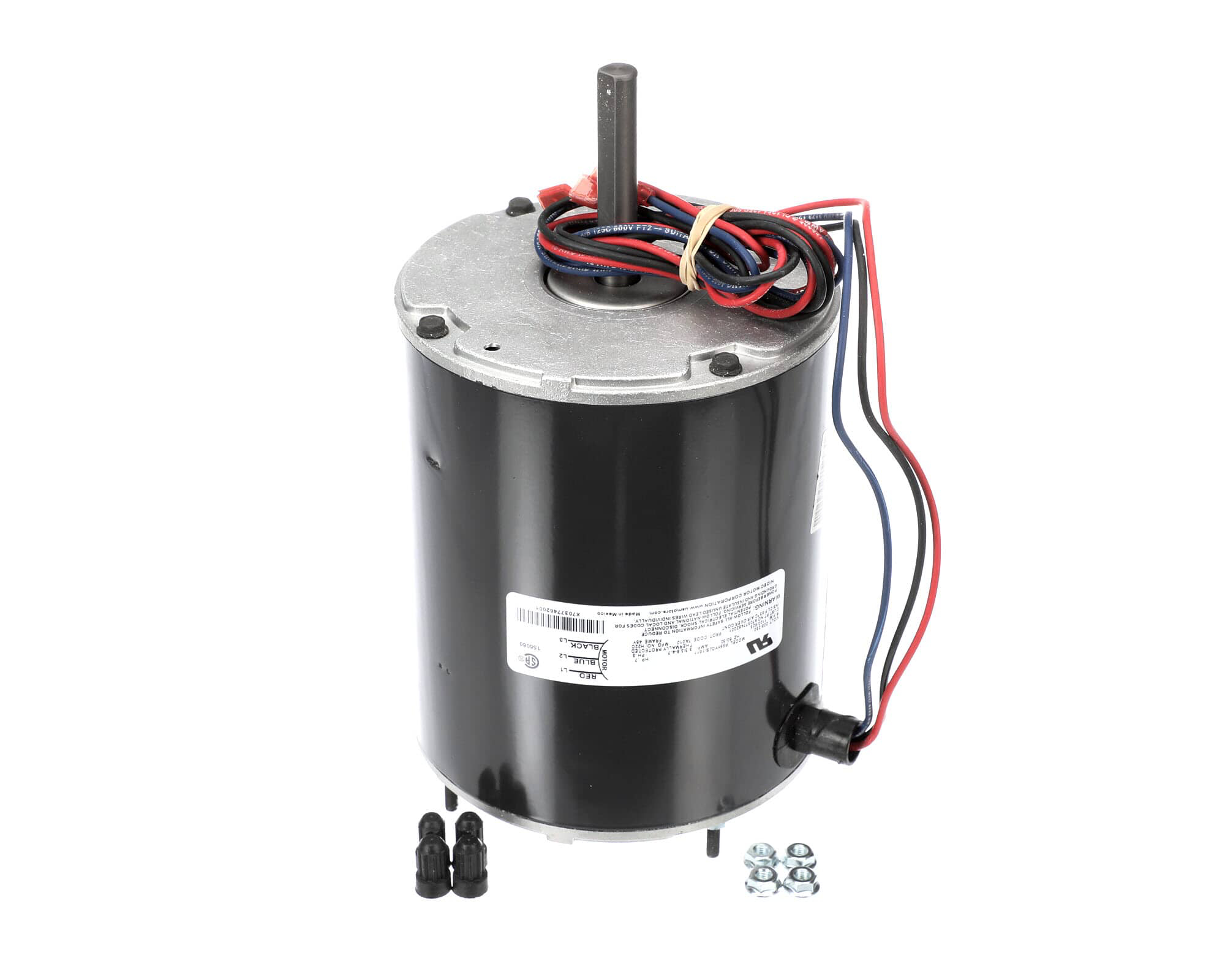

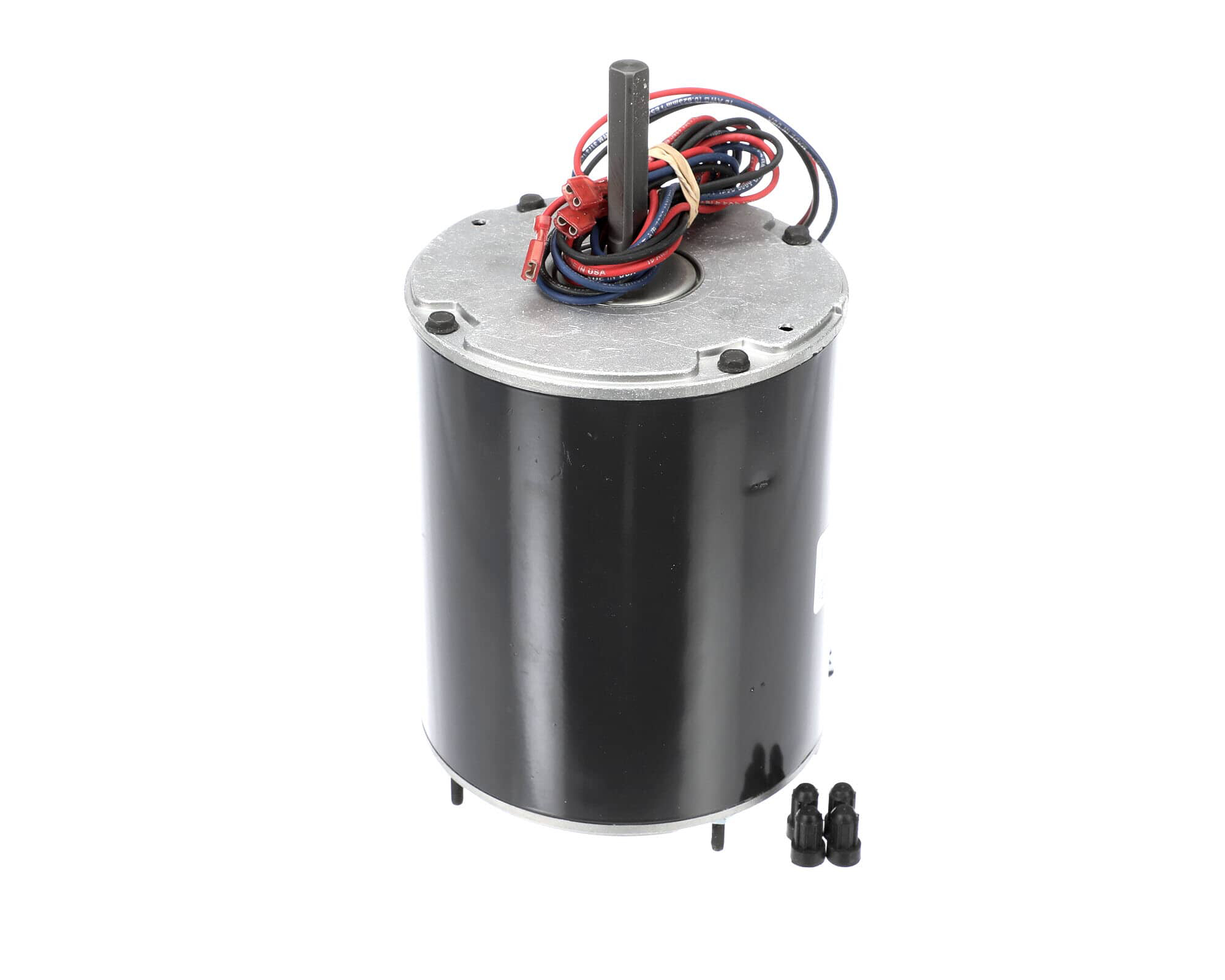

Condenser Fan Motor, 7/10 HP, Three Phase, 208-230V, 1,140 RPM, 48 Frame, Totally Enclosed Air-Over, Single Speed
Login /Create Account to view price and availability.
Technical Specs
Drawing Numbers
Where Used
Technical Specs
Export Product DetailsActual Height
6.81
Actual Length/Depth
9.51
Actual Weight
18.2
Actual Width
13.97
Frame
48
HP
7/10
Locked Rotor Current (A)
12.3
Motor Enclosure Type
Totally Enclosed Air-Over
No. of Speeds
1
Phase
3
Rotation
CCW LEAD End
RPM
1,140
Shaft Diameter (In)
0.5
Shaft Length (In)
9.51
Shipping Dimension UOM
IN
Shipping Height
7.90
Shipping Length/Depth
12.70
Shipping Weight
19.45
Shipping Weight UOM
LB
Shipping Width
8.30
Speed Type
Single
Thermal Protector
True
Voltage
208-230V
Drawing Numbers
X70377462001
Where Used
YSC072H3RHA03D001000000000000C0000000000
YSC092H3RHA04D0B000000000A000D0000000000
YSC102H3RLA03C000000600000000D0000000000
YSC120H3RHA03E000000001000000D0000000000
YSC102H3RLA26D000A2B000A00000D0000000000
YSC092H3RHA29D000A1B001A00000D0000000000
YSC090H3RMA250001000000000000C0000000000
DHC102H3RLA020000000000000000D0000000000
WSC090H3RCA05H0C1A2A000C00000D0000000000
TSC092H3RKA03D101000000000000D0000000000
TSC092H3EGA02D001A0A000000000D0000000000
YSC092H3RLA0400C1000000000000D0000000000
WSC090H3RKA05D0A1A10000000000D0000000000
YSC120H3RMA260700000000000000D0000000000
YSC120H3RMA25D000C10000000000D0000000000
YSC072H3EMA26C000A000000A0000C0000000000
TSC090H3EGA03D001000000AA0000C0000000000
TSC092H3E0A29D001000000000000D0000000000
YSC092H3RMA03C6A1A1A000A00000D0000000000
WSC092H3RNB2EG7B1A1B000AA0000D0000000000
TSC090H3R0A0200C5A2B000A00100C0000000000
YSC090H3RHA25D000000001000000C0000000000
YSC090H3ELA270000000000000000C0000000000
YSC092H3EHA03D0B0A10000A00000D0000000000
WHC092H3RGA29G7A1A1A0000D0000D0000000000
YSC102H3RHA230000000000000000D0000000000
YSC090H3RLA270001000000000000C0000000000
YSC072H3RLA26A001000000A00000C0000000000
YSC090H3RLA04K001000000A00000C0000000000
YSC092H3RMA26D000A10000A00000D0000000000
WHC092H3R0A26K6E1A1A6000B0100D0000000000
WSC072H3RNA2600C0A10601C70000C0000000000
WSC092H3R0A040700000000000000D1000000000
YSC102H3RHA04P701A1B0000A0000D1000000000
YSC092H3RLA26P1A0000000000000D0000000000
YSC092H3RMA04C000000000A0A000D0000000000
YSC102H3RHA03K000000001A00000D0000000000
YSC090H3RLA040000000000000000C0000000000
YSC072H3EHA03D001000000000000C0000000000
TSC120H3RGA02B004000000000000D0000000000
YSC090H3RLA220000000000000000C0000000000
YSC092H3RHA27K7A0000000A00000D0000000000
TSC120H3RPA03H004000000000000D0000000000
YSC090H3RHA26K000000000000000C0000000000
WSC092H3RGB2DD000A1A000000000D0000000000
YSC120H3RLA26D001000000000000D0000000000
WSC092H3RGA26A000000000000000D0000000000
YSC072H3RMA27C0C1C00000000000C0000000000
YSC092H3RHA04D000A0A000A00000D0000000000
YSC120H3RZA25D001000000000000D0000000000
WHC074H3R0A02F0C1A1A0000A0000D0000000000
TSC090H3RCA26D101000601000000C0000000000
YSC102H3ELA0400A0000000000000D0000000000
WHC092H3R0A03B0B3A2B600030000D0000000000
WSC102H3RGA25P6B1A1A6000CA000D0000000000
YSC102H3RHA26C0B1A1A000C00000D0000000000
YSC072H3RLA030000A00000B00000C0000000000
YSC072H3RYA03D1C0A1B000000000C0000000000
WHC092H3R0A03F0B0000000000000D0000000000
YSC120H3RHA04P7B0A1B000A00000D0000000000
TSC102H3EKA02A001A00000000000D0000000000
YSC072H3EMA250000000000A00000C0000000000
WSC120H3RNA040701A00000000000D0000000000
WSC092H3RGA27A001000000000000D0000000000
TSC092H3RGA26G700A1A000000000D0000000000
WHC102H3R0A0306B0A1B600A00000D0000000000
YSC090H3RHA27K000000001A00000C0000000000
TSC102H3R0A26B0D5000000000000D0000000000
YSC090H3EMA250000000000000000C0000000000
YSC120H3RHA25D000000001000000D0000000000
YSC072H3RMA03H001A1B000A00000C0000000000
YSC120H3RMA03D0000000000A0000D0000000000
YSC120H3RMA03D001C1B000000000D0000000000
YSC072H3RMA03D0C0A1A00001A000C0000000000
YSC120H3RLA26D700000000A00000D0000000000
YSC120H3RMA04C000000000000000D0000000000
YSC072H3RHA03D001A1A000A00000C0000000000
YSC120H3RHA03P700A1A000000000D0000000000
YSC102H3RHA04P1B0A1A000C0B000D0000000000
YSC092H3EMA220001000000000000D0000000000
TSC102H3EGA02A000A1B000000000D0000000000
TSC120H3RKA02F000000000000000D0000000000
YSC120H3RLA26H000A00000000000D0000000000
YSC092H3RLA040700000000000000D0000000000
YSC092H3RXA04K7D1C1B700000000D0000000000
WSC102H3RCA05F001A1A000000000D0000000000
YSC092H3ELA04D000000000000000D0000000000
YSC102H3RMA29K7B1A0A000000000D0000000000
YSC120H3RMA03H001000700030000D0000000000
YSC102H3RHA250700000000000000D0000000000
TSC120H3R0A03D000000000000000D0000000000
YSC102H3RYA27C0A1A10700C30000D0000000000
YSC090H3RHA04K000000000000000C0000000000
WSC102H3R0B2EK700000000C00000D0000000000
YSC092H3RHA26D0A0000000000000D0000000000
WSC092H3RKA26H6E1A2B600CE0100D0000000000
TSC090H3RGA02C001A20000A00000C0000000000
WSC092H3RKB2D00C1A1A000AA0000D0000000000
YSC072H3EHA25D000000001000000C0000000000
TSC102H3RNA02G6C1A1B6000E0000D0000000000
