MOT17781

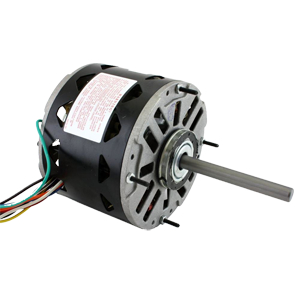

Condenser Fan Motor, 2/5 HP, Single Phase, 200-230V, 1,140 RPM, 48 Frame, Totally Enclosed Air-Over, Single Speed
Login /Create Account to view price and availability.
Technical Specs
Drawing Numbers
Where Used
Technical Specs
Export Product DetailsActual Length/Depth
8.8699999999999992
Actual Weight
16
Actual Width
14.3
Brand
Trane
Frame
48
HP
2/5
Locked Rotor Current (A)
5.2
Motor Enclosure Type
Totally Enclosed Air-Over
No. of Speeds
1
Phase
1
Rotation
CCW LEAD End
RPM
1,140
Shaft Diameter (In)
0.5
Shaft Length (In)
7.81
Shipping Dimension UOM
IN
Shipping Height
7.0
Shipping Length/Depth
13.0
Shipping Weight
22.0
Shipping Weight UOM
LB
Shipping Width
7.0
Speed Type
Single
Thermal Protector
True
Voltage
200-230V
Drawing Numbers
X70377420004
Where Used
WSC060H3RBA29M100000000000000C0000000000
WSC060H3RBA2CB0C1A2B0000A0000C0000000000
WSC060H3REA25A0A0000000000000C0000000000
WHC048H3RBA250600000000000000C0000000000
WHC060H3RGA26B0C10000000A0000C0000000000
WSC060H3R0A290000000001000000C1000000000
WHC048H3RGA22P1E100060106A100C1000000000
WHC060H3R0A2900C1000600000100C1000000000
WHC060H3RGA2E00B1000000000000C0000000000
WHC060H3R0A290001000000000000C0000000000
DHC048H3RMA27D0B1000000000000C0000000000
WHC048H3RBA2EH0B100060003A000C0000000000
WHC048H3RBA26P1E1A1B001060100C0000000000
WHC060H3R0A0400B0000000B10000C0000000000
WSC060H3RGA03H0C1A0060007A000C0000000000
WHC060H3RBA2EP1B1000600070000C1000000000
WSC060H3RGA290000000000000000C0000000000
WHC048H3REA24D000A00001000000C0000000000
WSC060H3R0A03D001000000A00000C0000000000
WHC048H3REA29P6C1000000000000C0000000000
WHC060H3R0A26D0B1000000000000C0000000000
WHC060H3R0A26MFE1A1A6000B0100C0000000000
WSC060H3RGA29P1B1A1B000A0A000C1000000000
WSC060H3R0A26D000000000000000C0000000000
WHC048H3REA04B0B1A20600030000C0000000000
WHC060H3REA04D0000000000A0000C0000000000
WSC060H3RGA03A000000000000000C0000000000
WSC060H3R0A03K0B100000000B000C0000000000
WHC060H3RJA26A0C0A100000A0000C0000000000
WHC060H3R0A22K6C3A2A6000A0000C0000000000
WHC048H3R0A26A0A1000000000000C0000000000
WSC060H3RGA03H0A3A2A001000000C0000000000
WHC048H3RBA29E1C3A20000000000C0000000000
DHC048H3RHA26D0D1000000000000C0000000000
WSC060H3RGA29H000000000A00000C0000000000
WHC048H3R0A270001000001000000C0000000000
WSC060H3R0A03A0B0000000000000C0000000000
WSC060H3R0A27K1D1000000000100C0000000000
WHC060H3REA2AD001000000000000C0000000000
WHC048H3RBA2906E1A1B000A00000C0000000000
WSC060H3REA2301000000000A0000C0000000000
WSC060H3REA2BH100A1B000000000C0000000000
WSC060H3RGA270000000000000000C0000000000
WHC060H3R0A2B01D1000000000000C0000000000
WHC048H3R0A2D01D1000000000000C0000000000
DHC048H3RHA29D001000000000000C0000000000
WHC048H3RBA2D0F01000000000000C0000000000
WSC060H3R0A0300D2000000000000C0000000000
WSC060H3R0A03D0B1A1A000A00000C0000000000
WHC060H3RBA27H0E1000000000000C0000000000
DHC060H3RMA04D0C1A1B601C00000C0000000000
WHC048H3RGA04F0E1A106000DA100C0000000000
WSC060H3REA03A000000000000000C0000000000
DHC060H3RHA26D0D1000000000000C0000000000
WHC060H3R0A26A0A1000000000000C0000000000
WSC060H3RGA25H0A10000000A0000C0000000000
WHC048H3RBA2B01D1000600000000C0000000000
WSC060H3REA25E0C1000001A0A000C0000000000
WHC060H3R0A2FP1B300060003A000C0000000000
WHC048H3REA04D000000000000000C0000000000
WSC060H3R0A030000000001000000C0000000000
WHC048H3REA04B0B3000600030000C0000000000
WHC048H3R0A26C0B1000000000000C1000000000
WHC060H3RGA29A0E1000000000000C0000000000
WSC060H3RJA29H1B1A00600030000C0000000000
WHC060H3RBA27C6C1A10600000000C0000000000
WSC060H3R0A220000000000000000C0000000000
WHC048H3RGA2FK6A1A10000B00000C0000000000
WHC048H3RBA2DK6E1A1B6000E0100C1000000000
WSC060H3RBA03B1B3A1B000000100C0000000000
DHC060H3RMA27D0B1000000000000C0000000000
WSC060H3RBA24H001A1B000000000C0000000000
WHC048H3REA26C0C1000600000000C1000000000
WHC060H3RBA2EC1D1A1A600000000C0000000000
WHC060H3RBA2EC1D1A1A600A00000C0000000000
WHC048H3RBA04H1C3A1B00000A000C0000000000
WHC060H3REA2FH0B100060003A000C0000000000
WHC048H3RBA2EC0D1A1A600000000C0000000000
WHC060H3RGA26G0D1A1B000000000C0000000000
WHC048H3RGA25G1C1A0000000A000C0000000000
WSC060H3REA0300A1A1B000A00000C0000000000
WHC048H3R0A2FH0B300060003A000C0000000000
WHC060H3REA04G0A0000000000000C0000000000
WHC048H3RGA250FB0000600000000C0000000000
WSC060H3RGA25A0C1A1B0000A0000C0000000000
WHC048H3R0A24H0B100060000A000C0000000000
WHC048H3R0A29K8B1A1A600ACA000C0000000000
WHC060H3RBA29B001A0A0000A0000C0000000000
WHC048H3RGA23P1E100060106A100C1000000000
WHC048H3R0A0400B0000600000000C1000000000
WHC060H3REA040000000000000000C0000000000
WHC060H3RBA04H0C0A100000B0000C0000000000
WSC060H3REA26B0A1A10000000000C0000000000
WSC060H3R0A030002000000A00000C0000000000
WSC060H3REA03B0B0A1B000000000C0000000000
WSC060H3RGA2AA001000000000000C0000000000
DHC060H3RMA26D0B100000000A000C0000000000
WSC060H3RBA2EH001A0A000A00000C0000000000
WHC048H3R0A04A001000000000000C0000000000
WHC048H3RBA23B0A1A1A000000000C0000000000
