MOT17288

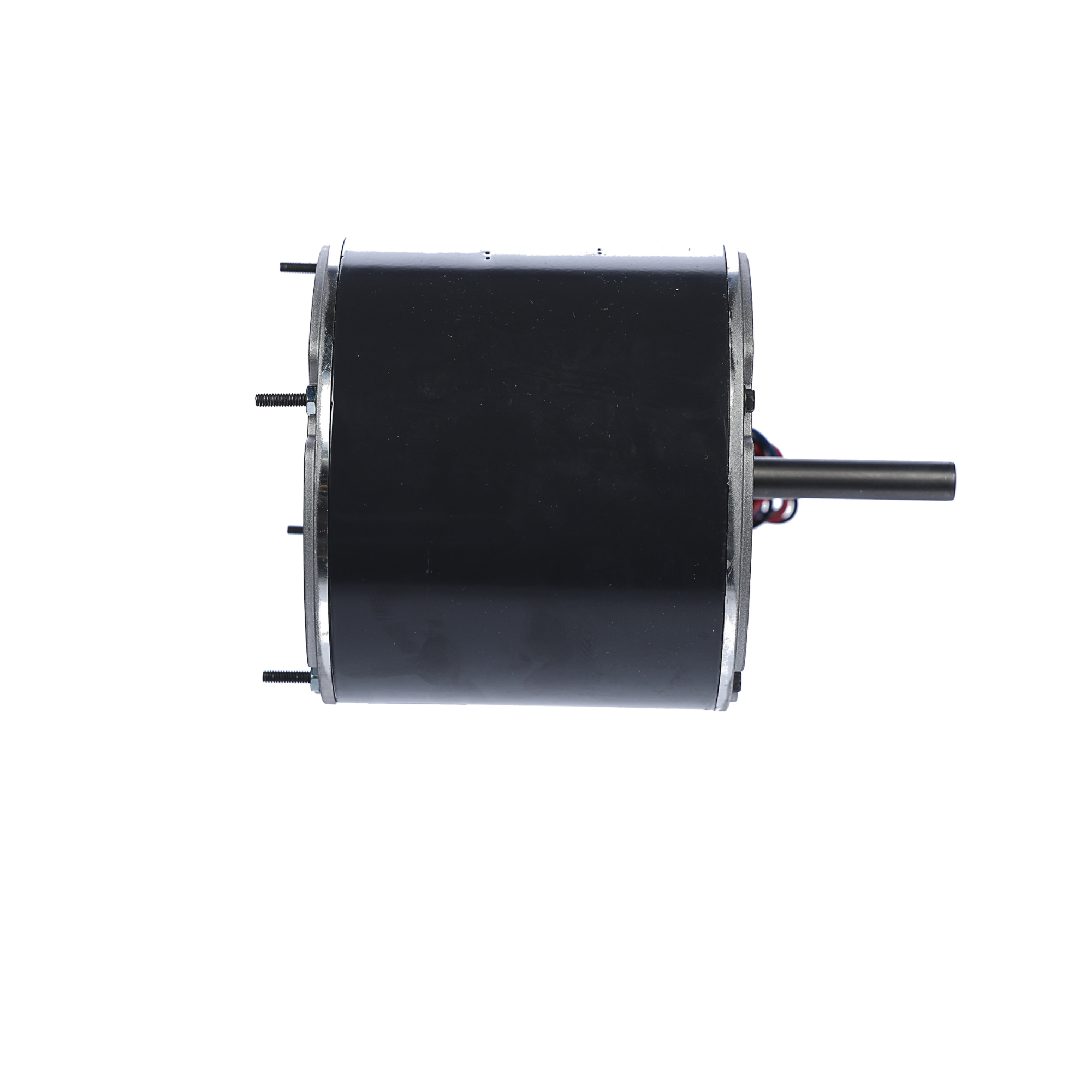

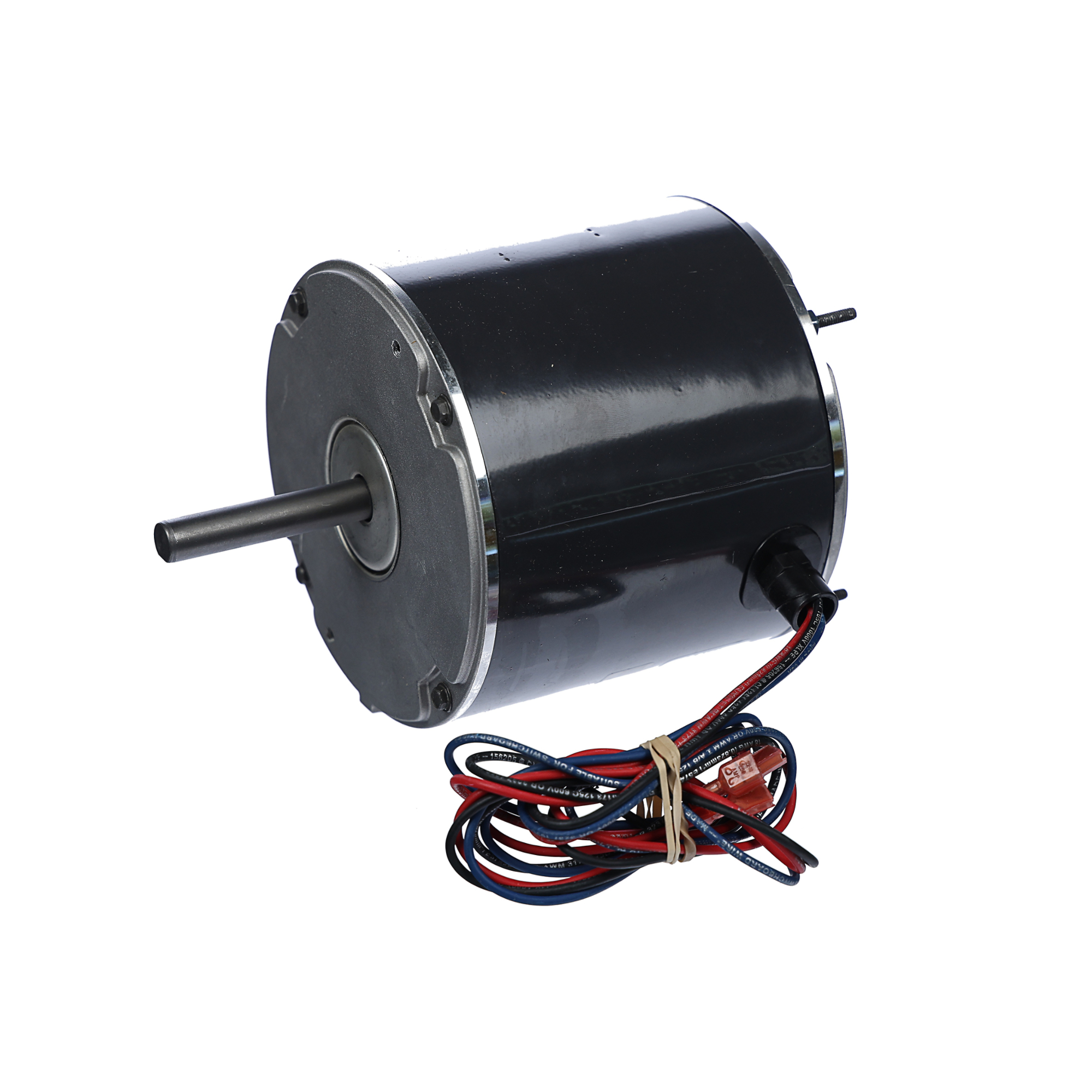

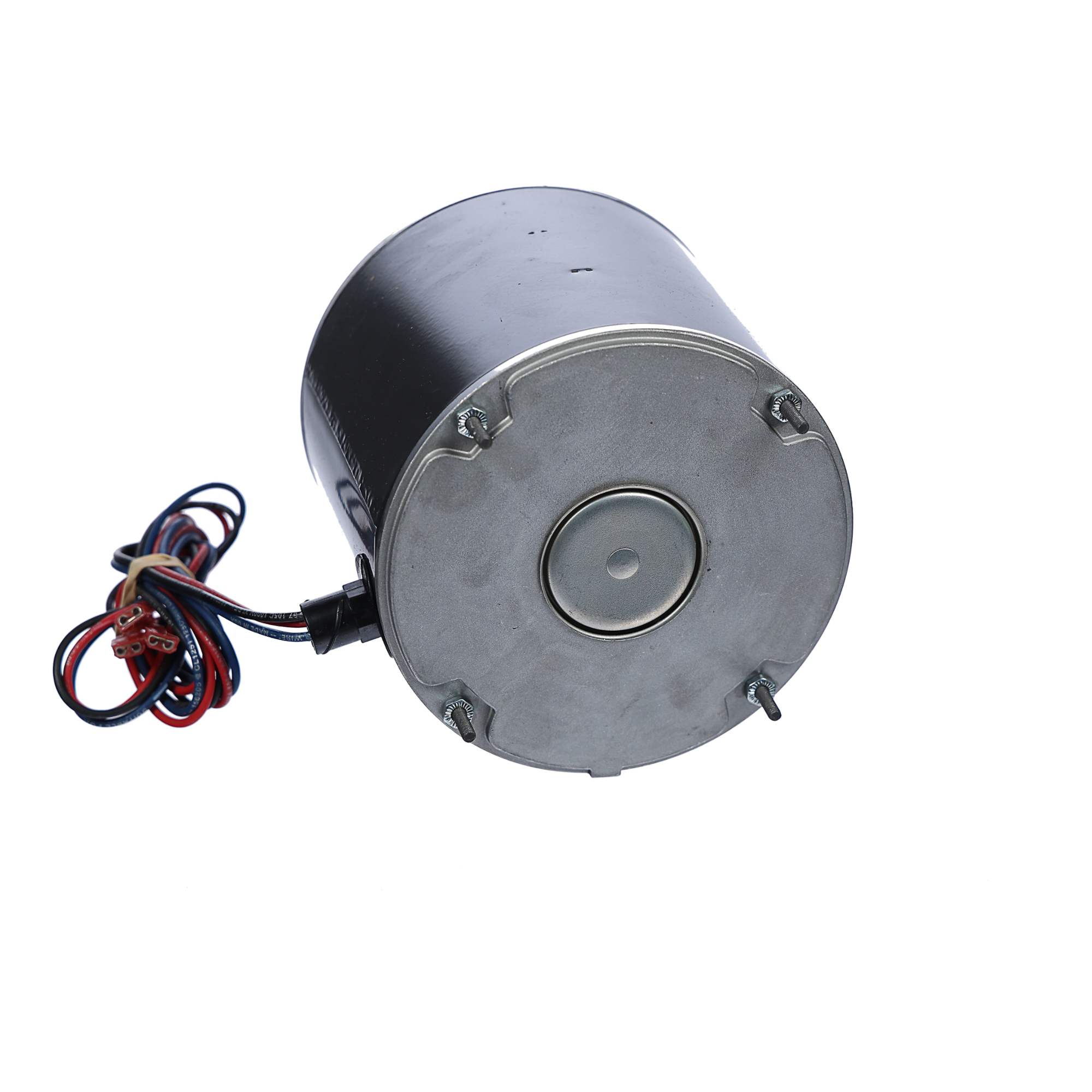

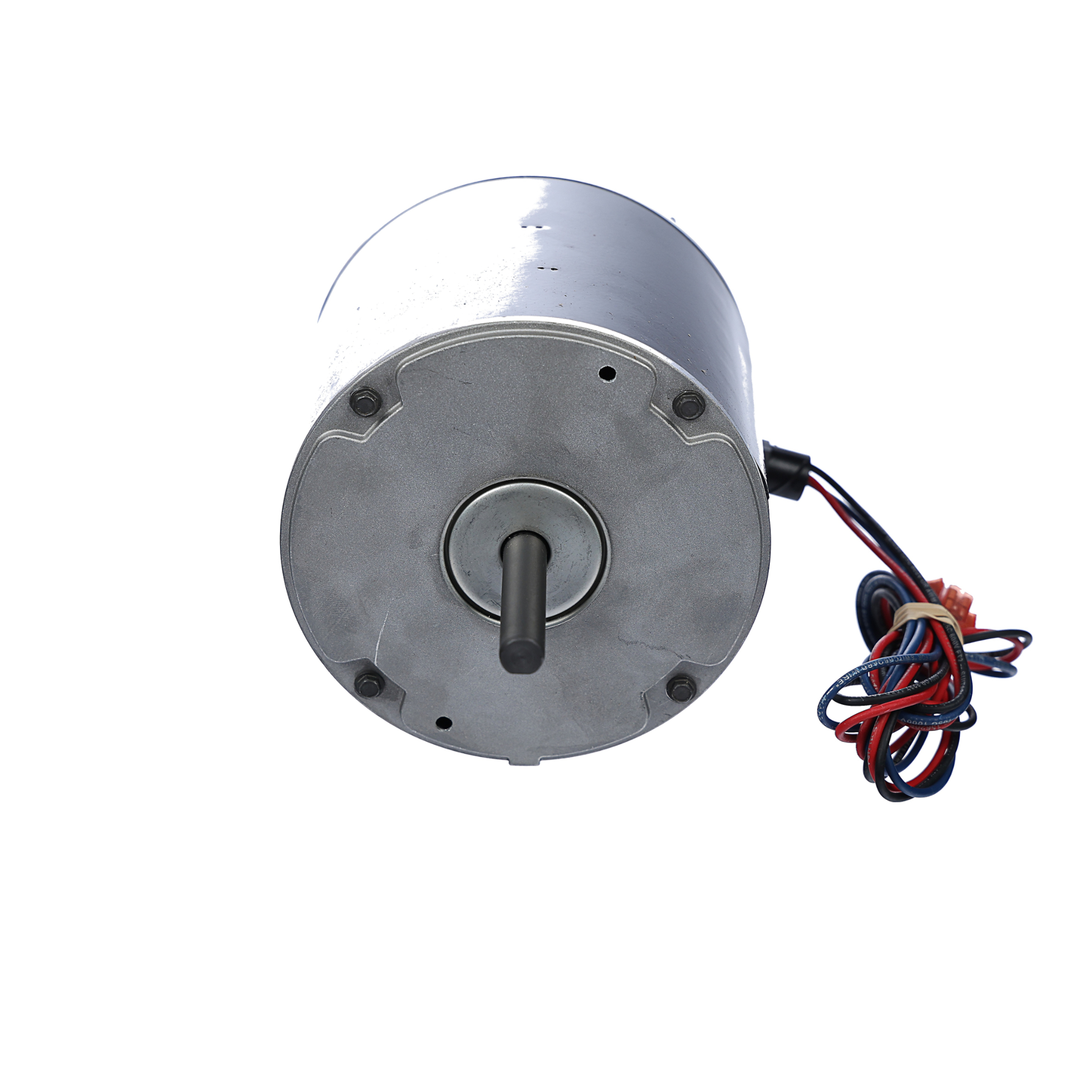

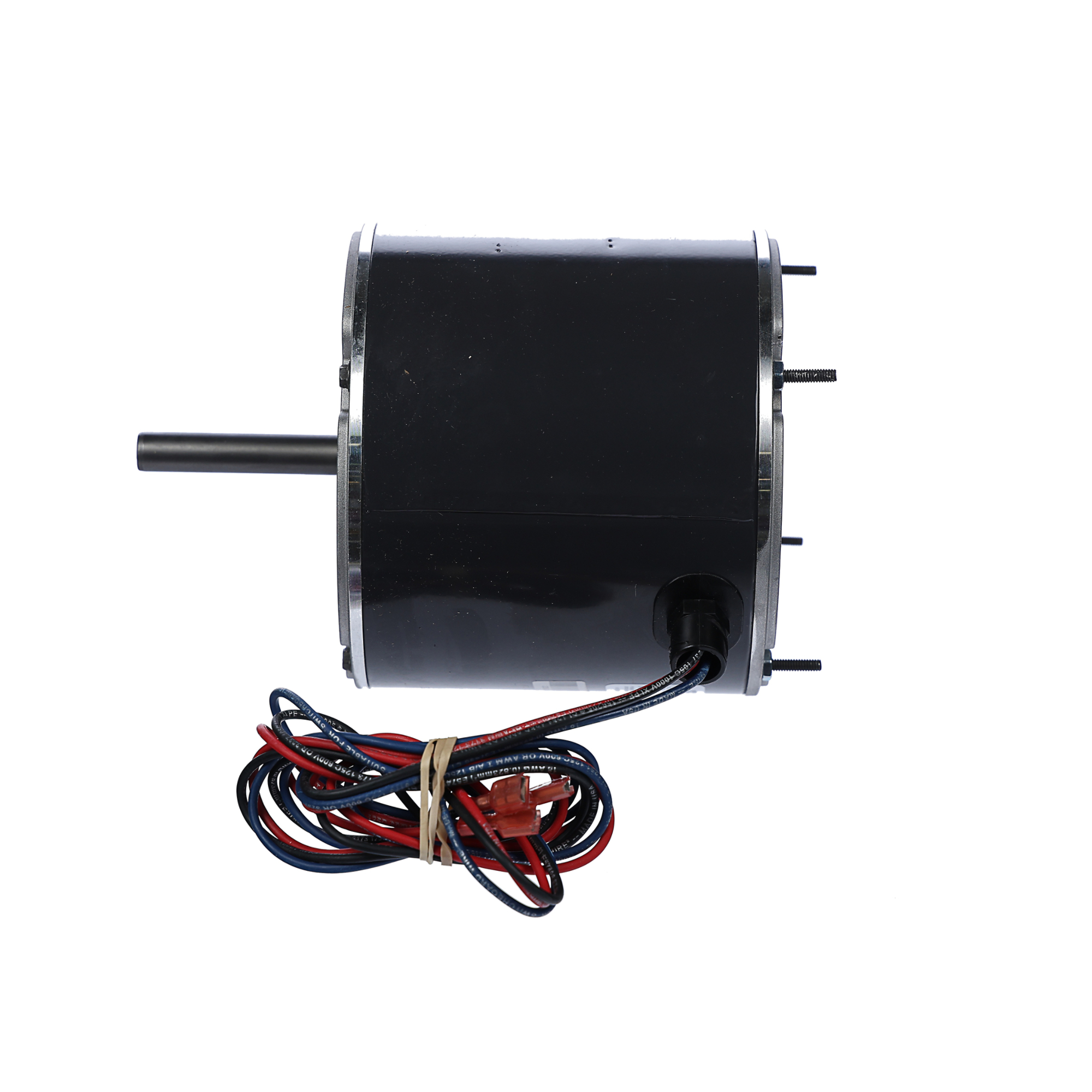

Condenser Fan Motor: 3 Phase, 1,140 RPM, 48, Totally Enclosed Air-Over, 1 Speed
Login /Create Account to view price and availability.
Technical Specs
Drawing Numbers
Where Used
Technical Specs
Export Product DetailsActual Length/Depth
7.56
Actual Weight
9.2100000000000009
Brand
Trane
Frame
48
HP
1/4
Locked Rotor Current (A)
1.8
Motor Enclosure Type
Totally Enclosed Air-Over
No. of Speeds
1
Phase
3
Rotation
CCW LEAD End
RPM
1,140
Shaft Diameter (In)
0.5
Shaft Length (In)
7.56
Shipping Dimension UOM
IN
Shipping Height
7.00
Shipping Length/Depth
13.00
Shipping Weight
10.42
Shipping Weight UOM
LB
Shipping Width
7.30
Speed Type
Single
Thermal Protector
True
Voltage
208-230/460V
Drawing Numbers
X70377419002
Where Used
YSC036G4ELB030000000000000000F0000000000
YSC036G4RLB27A0C1A1A000000000F0000000000
WHC036H4R0B25K0A1A1A000010100F0000000000
WHC036H4REB27K6D1A1A600BEA000F0000000000
YSC036G4RMB260001000600000000F0000000000
WSC036H4R0A27K1B1000600000000F0000000000
YSC036G4ELB270000000000000000F0000000000
WHC036H4R0B23K1E3A20600B00000F1000000000
YSC036G4RMB26K0D5000000000000F0000000000
TSC036G4RBA03F000000000000000F0000000000
WSC036H4R0A26A0B0000000000000F0000000000
YSC036G4RHB04D001C10600000000F0000000000
YSC036G4RZB25K0A1000601070000F0000000000
WSC036H4R0A03A0C0000000000000F0000000000
YSC036G4RLB27D0D0A106000HA000F1000000000
YSC036G4RLB04G100A10000000000F0000000000
WHC036H4R0B0400C1A00600000000F0000000000
TSC036G4EEA03C001000000000000F0000000000
YSC036G4RMB2900A0000000000000F0000000000
TSC036G4RBA27D0B1000000000000F0000000000
WHC036H4RBB04D0C10006000A0000F0000000000
YSC036G4EMB2BA0A1A2B000000000F0000000000
YSC036G4ELB26D0C0A1B000000000F0000000000
YSC036G4RMB2500B0A1B000000000F0000000000
YSC036G4ELB04D001000000AA0000F0000000000
WSC036H4R0A25A0B0000000000000F0000000000
WHC036H4R0B29K1E3A1A601BH0100F0000000000
TSC036G4RBA25A1B0A1A000000000F0000000000
YSC036G4RLB26K0C1000600AA0000F0000000000
YSC036G4ELB04A0E1A10000000000F0000000000
YSC036G4RLB2FB1C1A2B001000000F0000000000
YSC036G4RMB25D0B1A10700C0A000F0000000000
YSC036G4RHB04D000A2B000000000F0000000000
YSC036G4RYB25A001000000000000F0000000000
WSC036H4RBA26D000000600000000F0000000000
YSC036G4RLB04D0A1A1A000A00000F0000000000
WHC036H4R0B27B0C10006010A0000F0000000000
YSC036G4RLB0400B1A2B000010100F0000000000
YSC036G4RMB25A0D1C1A000000000F0000000000
TSC036G4EBA25B1D00000000A0000F0000000000
YSC036G4ELB04C000A1B000000000F0000000000
TSC036G4RBA26D0D1A1B000000000F0000000000
YSC036G4RMB04C000A1A000A00000F0000000000
YSC036G4RHB2EK000000001000000F0000000000
YSC036G4RHB04K000C1B000000000F0000000000
WHC036H4R0B27K6E1A1A7000EA000F0000000000
WSC036H4REA25H0C1A10000000000F0000000000
TSC036G4REA2FP000A106000B0100F0000000000
TSC036G4RGA22H0B0A10701000000F0000000000
WSC036H4R0A03G0D0A1B601A60000F0000000000
WHC036H4R0B0400B0000600000000F0000000000
YSC036G4RHB27E001000700070000F0000000000
YSC036G4RMB04A0A1A1A000A00000F0000000000
WHC036H4RBB04D6C3A2A0000E0100F0000000000
YSC036G4RHB040001000000A00000F0000000000
WSC036H4REA03B0C10000010A0100F0000000000
YSC036G4RLB2AA001000000000000F0000000000
WHC036H4RBB26B0E10000000E0000F0000000000
YSC036G4RMB25H0B1000000000000F0000000000
WHC036H4R0B29A0C1000000000000F0000000000
YSC036G4RLB2BB0E1C1A6000A0000F0000000000
YSC036G4RYB26K0C1A1B60000A000F0000000000
TSC036G4E0A030005000000000000F0000000000
TSC036G4R0A03D0B1000600070000F0000000000
WSC036H4R0A03D000000000000000F0000000000
TSC036G4E0A26C001A1B000000000F0000000000
YSC036G4ELB25A001A2B000000000F0000000000
WSC036H4RGA0300A0A10200000000F0000000000
YSC036G4RLB04D000A1B60000A000F0000000000
YSC036G4RLB04P0C1A1B600000000F0000000000
YSC036G4EHB26D0A1A10000000000F0000000000
YSC036G4EMB2B0000000000000000F0000000000
YSC036G4RMB0400A0A10000000000F0000000000
WSC036H4REA2EA0A1A2A000000000F0000000000
WSC036H4RBA26B0D1A1B000000000F0000000000
WSC036H4RBA26C0A1A10600000000F0000000000
DHC036H4RXB2EC6E1A2A700AB0100F1000000000
TSC036G4REA26A001000000000000F0000000000
YSC036G4RLB2E0001000000000000F0000000000
TSC036G4E0A030000A10000000000F0000000000
YSC036G4RHB04D100000000000000F0000000000
YSC036G4RLB03K00100060000C000F0000000000
WSC036H4RGA26C0C1A1A0000A0000F1000000000
YSC036G4RLB27D001A1A000A00000F0000000000
YSC036G4RHB040001000000000000F0000000000
DHC036H4RLB250ED1C20600040000F0000000000
TSC036G4R0A2700B0A1B0000H0100F1000000000
YSC036G4RLB23F1B1A1B100000000F0000000000
TSC036G4REA25D001000000000000F0000000000
WSC036H4REA03A0C1A1B0000H0000F0000000000
TSC036G4R0A2E0000000000000000F0000000000
YSC036G4EMB2B0000000000A00000F0000000000
YSC036G4RHB26K000000001000000F0000000000
TSC036G4R0A2C0000000000000000F0000000000
YSC036G4RHB22G000000000000000F0000000000
WSC036H4R0A2DA1D0000000000000F0000000000
WSC036H4REA03F0B1A206000H0000F0000000000
WHC036H4R0B04K10000000000C000F0000000000
YSC036G4RHB04D000A20000000000F0000000000
TSC036G4RBA27D0B1A106000A0000F0000000000
