MOT17287

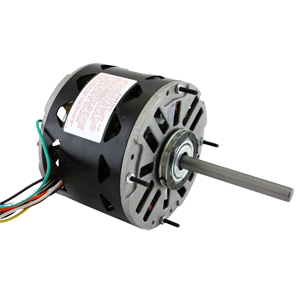

Condenser Fan Motor, 1/4 HP, Three Phase, 200-230V, 1,140 RPM, 48 Frame, Totally Enclosed Air-Over, Single Speed
Login /Create Account to view price and availability.
Technical Specs
Drawing Numbers
Where Used
Technical Specs
Export Product DetailsActual Length/Depth
7.56
Actual Weight
9.32
Actual Width
5.6
Brand
Trane
Frame
48
HP
1/4
Locked Rotor Current (A)
3.6
Motor Enclosure Type
Totally Enclosed Air-Over
No. of Speeds
1
Phase
3
Rotation
CCW LEAD End
RPM
1,140
Shaft Diameter (In)
0.5
Shaft Length (In)
7.56
Shipping Dimension UOM
IN
Shipping Height
7.10
Shipping Length/Depth
13.00
Shipping Weight
10.35
Shipping Weight UOM
LB
Shipping Width
7.20
Speed Type
Single
Thermal Protector
True
Voltage
200-230V
Drawing Numbers
X70377419001
Where Used
YSC036G3RHB25C0A1C1A000000000F0000000000
YSC036G3EHB23A0C0A10000000000F0000000000
YSC036G3RMB25B0010006000A0000F0000000000
YSC036G3RHB26F0B1A10000040000F0000000000
YSC036G3RLB2EC0C1000600A00000F0000000000
WSC036H3REA29A0B0000000000000F0000000000
YSC036G3ELB260001000000000000F0000000000
YSC036G3RHB25D001A10000B00000F0000000000
YSC036G3RMB26F0B0000000B00000F0000000000
TSC036G3E0A220001000000000000F0000000000
YSC036G3EMB2CD000000000000000F0000000000
WHC036H3R0B04K0A00007000H0000F0000000000
YSC036G3RMB04D0A1A20000000000F0000000000
YSC036G3RHB25D000000000000000F0000000000
YSC036G3RHB0400A1000000000000F0000000000
TSC036G3REA03D0B1A10000B00000F0000000000
WSC036H3RBA2500B0000000000000F0000000000
YSC036G3RLB26A0B0000000000000F0000000000
YSC036G3RMB220000000000000000F0000000000
YSC036G3RLB04F0C0A1A000010000F0000000000
WHC036H3REB2501E1000600070000F0000000000
YSC036G3RLB26C0B0000000000000F0000000000
DHC036H3RLB2E00E1A10000000000F0000000000
YSC036G3RLB2DD001000000000000F0000000000
YSC036G3ELB250001000000000000F0000000000
YSC036G3EMB2ED001000000000000F0000000000
TSC036G3E0A2E0000000000000000F0000000000
WHC036H3R0B250000000000000000F0000000000
WSC036H3REA03D0B1A100010A0000F0000000000
YSC036G3RLB04B1D0000600000000F0000000000
WSC036H3R0A2F0001000000000000F0000000000
YSC036G3RMB2ED0C1C10000000000F0000000000
YSC036G3RHB25F000A1A000000000F0000000000
YSC036G3RLB26D001000100000000F0000000000
YSC036G3RHB04K000000700000000F0000000000
YSC036G3RMB2CF0C1000601000000F0000000000
YSC036G3RMB04P1B0C1B700010000F0000000000
DHC036H3RLB2FP0B1C1B000000000F0000000000
YSC036G3RMB04P0E0A2A001A00000F0000000000
DHC036H3RHB29K6A1000000AA0000F1000000000
YSC036G3RLB04C0C1C1A000000000F0000000000
YSC036G3RHB04K000000001A0B000F0000000000
TSC036G3EEA03B0B0A10000000000F0000000000
WSC036H3RBA25B001A1A000000000F0000000000
YSC036G3EHB04D001A00000000000F0000000000
YSC036G3RHB27E0C1A10000040100F0000000000
YSC036G3EHB2300B0000000000000F0000000000
WSC036H3RBA2ED0B000000000A000F0000000000
YSC036G3RZB040000000000000000F0000000000
YSC036G3RLB04M0C1A1A001000000F0000000000
YSC036G3ELB26D001C1B000000000F0000000000
WSC036H3REA2201B1A1A601000000F0000000000
WSC036H3R0A26K0B0000000000000F0000000000
YSC036G3ELB26D0D10000000A0000F0000000000
YSC036G3RHB29K000000001000000F0000000000
WHC036H3REB2DF0C1A1B6010A0100F0000000000
TSC036G3EEA29D0C1000000000000F0000000000
WSC036H3RGA2ED0B0A2B000000000F0000000000
DHC036H3RLB290001000001000000F0000000000
WHC036H3REB29B0E1A1B001000000F0000000000
YSC036G3RLB04K0B5000000000000F0000000000
WHC036H3R0B2700D1000000000000F0000000000
WSC036H3REA03H0C1A000000AA000F0000000000
YSC036G3EMB270001000000000000F0000000000
YSC036G3RXB04B0B0000000000000F0000000000
YSC036G3EMB0400B0A1A000000000F0000000000
TSC036G3R0A03D001A10000000000F0000000000
WHC036H3R0B04A0C1A1B6000A0000F1000000000
YSC036G3RLB29D001A1B000000000F0000000000
WSC036H3REA03H0B0000600000000F0000000000
TSC036G3EGA2DD0B1000000000000F0000000000
WHC036H3RBB2600E1A1B001060100F0000000000
YSC036G3ELB04A0A1A00000D00000F0000000000
YSC036G3RXB26M0B1A1B001000000F0000000000
YSC036G3EMB04A0C1A1B000000000F0000000000
YSC036G3RHB2DD0B1000000000000F0000000000
TSC036G3REA260001000000000000F0000000000
YSC036G3RHB25D000A1B000000000F0000000000
YSC036G3RLB25H0B0A10600000000F0000000000
YSC036G3RLB26G000A1A000A00000F0000000000
YSC036G3RHB240001000000000000F0000000000
YSC036G3RMB2CD0B0A1B000A00000F0000000000
YSC036G3EMB25D0A1A10000000000F0000000000
YSC036G3RLB03A0A0A10000000100F0000000000
YSC036G3ELB25B1E1A1B000000000F0000000000
YSC036G3EMB25D001000000000000F0000000000
WSC036H3R0A03K003000600000000F0000000000
YSC036G3RMB2D0000000000000000F0000000000
YSC036G3RLB23A0D0C1B000000000F0000000000
YSC036G3ELB25C0C0A10000000000F0000000000
WSC036H3R0A2F0000000001000000F0000000000
YSC036G3RLB260001000000000000F0000000000
YSC036G3RHB04K000000000000000F0000000000
YSC036G3RLB0400A0A1A000000000F0000000000
YSC036G3RHB29C1D1A1B001000000F0000000000
YSC036G3EHB04D0B1A2A000B00000F0000000000
WHC036H3REB04B1B3A10000000000F0000000000
YSC036G3EMB04A000A1B0000A0000F0000000000
WSC036H3RBA03B000000000000000F0000000000
TSC036G3EBA25B000000000000000F0000000000
