HomeParts & SuppliesHVAC Compressors
R410A

COM13987

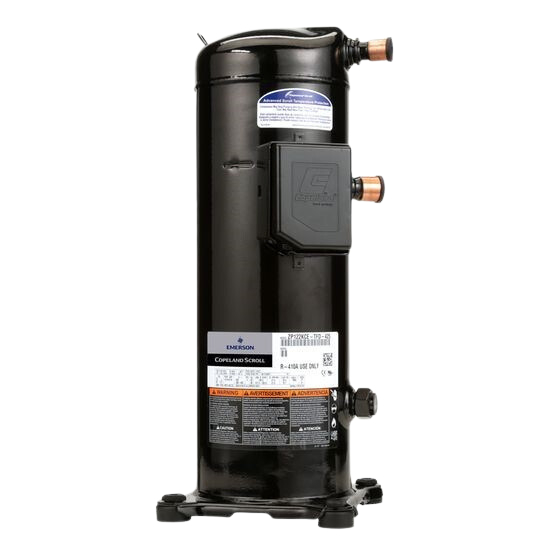

Scroll Compressor, Tandem, 106,000 BTU/h, 8.7 tons, R-410A, 460V, Three Phase, 60 Hz, 1 1/8 in. Suction, 7/8 in. Discharge
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
106,000
Current (Amps)
16.4
Discharge Connection Size (OD)
7/8
Frequency (Hz)
60
Horsepower (HP)
9
Modulation Type
Tandem
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
22.7
Oil Recharge (Ltr)
2.40
Oil Type
POE (Polyolester Oil)
Overall Height (In)
22
Overall Length (In)
9.69
Overall Width (In)
9.69
Phase
3
Protection Type / Housing
Hermetic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
8.7
Shipping Dimension UOM
IN
Shipping Height
29.15
Shipping Length/Depth
14.5
Shipping Weight
138.0
Shipping Weight UOM
LB
Shipping Width
17.17
Speed (RPM)
3,500
Standards
UL
Suction Line Size (OD)
1-1/8 in.
Voltage (VAC)
460V
