R410A

COM12278

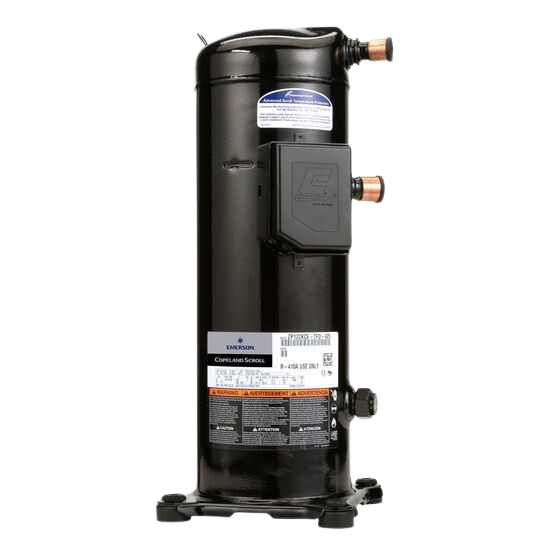

Scroll Compressor, Two Stage, 104,000 BTU/h, 9 tons, R-410A, 200-230V, Three Phase, 60 Hz, 1 1/8 in. Suction, 7/8 in. Discharge
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Height
27.5
Actual Length/Depth
29
Actual Width
17
Brand
Copeland
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
104,000
Current (Amps)
36.3
Discharge Connection Size (OD)
7/8 in.
Frequency (Hz)
60
Horsepower (HP)
8.5
Modulation Type
Two Stage
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
22.80
Oil Recharge (Ltr)
2.4
Oil Type
POE (Polyolester Oil)
Phase
3
Protection Type / Housing
Hermetic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
9
Shipping Dimension UOM
IN
Shipping Height
14.0
Shipping Length/Depth
29.0
Shipping Weight
150.0
Shipping Weight UOM
LB
Shipping Width
17.0
Speed (RPM)
3,500
Standards
UL
Suction Line Size (OD)
1-1/8 in.
Voltage (VAC)
200-230V
