COM12275

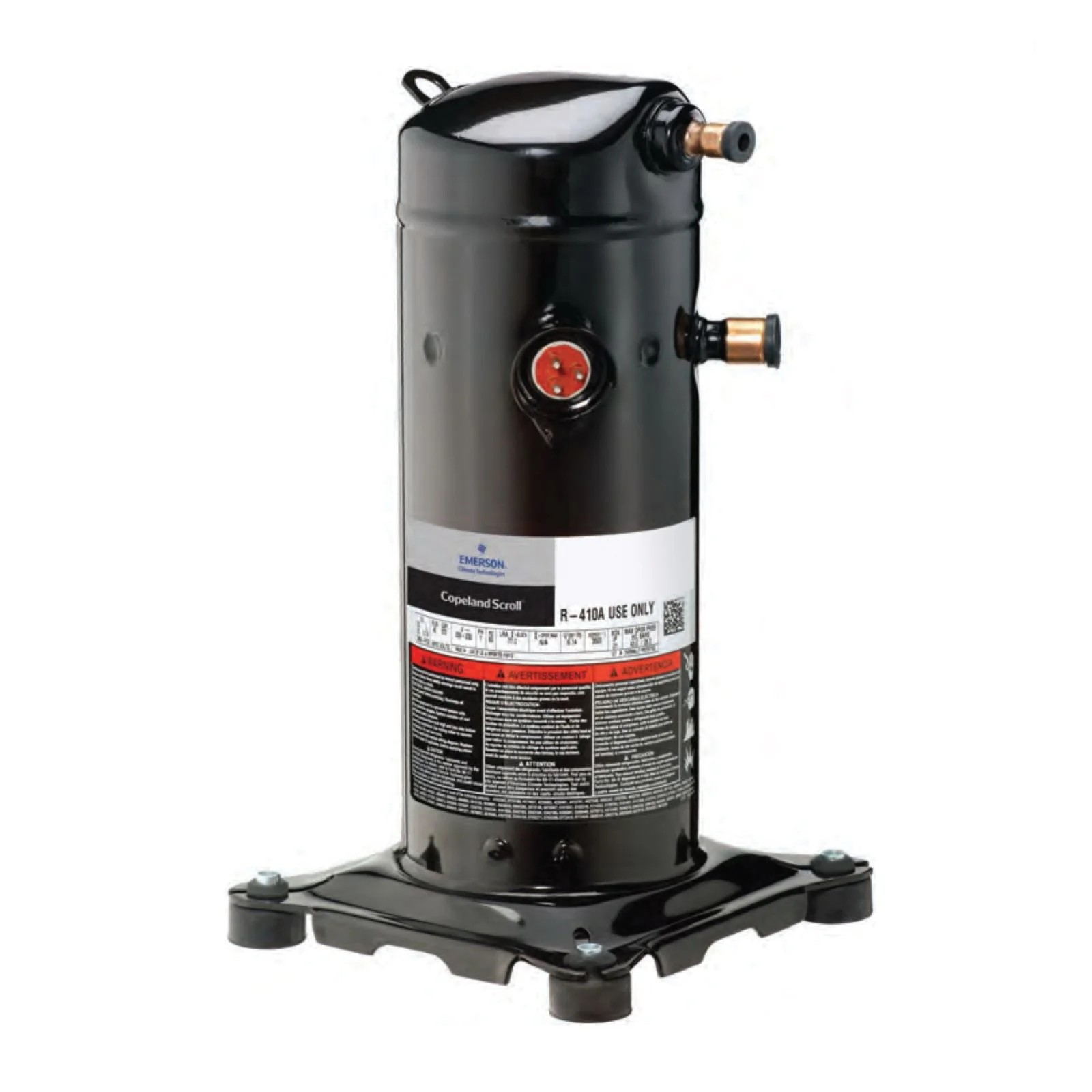

Scroll Compressor, Two Stage, 91,000 BTU/h, 8 tons, R-410A, 230V, Three Phase, 60 Hz, 7/8 in. Suction, 3/4 in. Discharge
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Height
20
Actual Length/Depth
20
Actual Width
14
Brand
Copeland
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
91,000
Current (Amps)
32.1
Discharge Connection Size (OD)
3/4 in.
Frequency (Hz)
60
Horsepower (HP)
7.5
Modulation Type
Two Stage
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
18.5
Oil Recharge (Ltr)
1.6
Oil Type
POE (Polyolester Oil)
Phase
3
Protection Type / Housing
Hermetic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
8
Shipping Dimension UOM
IN
Shipping Height
13.0
Shipping Length/Depth
20.0
Shipping Weight
87.0
Shipping Weight UOM
LB
Shipping Width
14.0
Speed (RPM)
3,500
Standards
UL
Suction Line Size (OD)
7/8 in.
Voltage (VAC)
230V
