R410A

COM12248

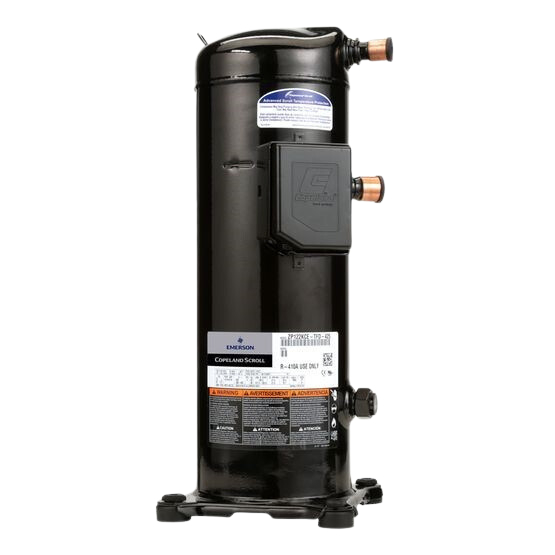

Scroll Compressor, Variable Speed, 985,000 to 136,500 BTU/h, 10 tons, R-410A, 460-575V, Three Phase, 60 Hz, 1 1/8 in. Suction, 7/8 in. Discharge
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Length/Depth
29
Brand
Trane
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
985,000 to 136,500
Discharge Connection Size (OD)
7/8 in.
Frequency (Hz)
60
Horsepower (HP)
10-15
Modulation Type
Variable Speed
Mounting Dimensions (L x W)
7.50 x 7.50
Oil Type
POE (Polyolester Oil)
Overall Height (In)
22.75
Overall Width (In)
10.33
Phase
3
Protection Type / Housing
Hermetic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
10
Shipping Dimension UOM
IN
Shipping Height
28.50
Shipping Length/Depth
14.30
Shipping Weight
118.00
Shipping Weight UOM
LB
Shipping Width
17.20
Speed (RPM)
5,400
Standards
UL,CSA
Suction Line Size (OD)
1-1/8 in.
Voltage (VAC)
460-575V
