COM11474 Superseded

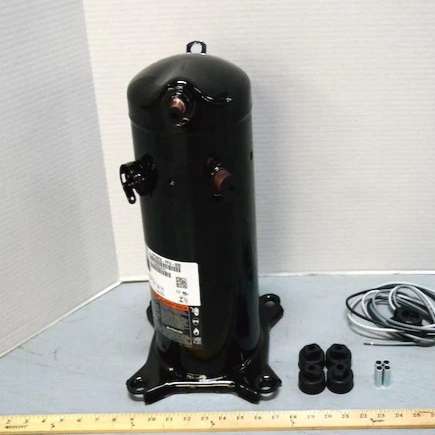

Scroll Compressor, Fixed Speed, 15,500 BTU/h, 1.3 tons, R-410A, 200-230V, Single Phase, 60 Hz, 3/4 in. Suction, 1/2 in. Discharge
Login /Create Account to view price and availability.
Supersessions1 Items
| Items | Description | Notes | Action |
|---|---|---|---|
COM14936 SKU Number | COMPRESSOR; SCROLL, ZP16LXE-PFV-800, R-410A, 1.33T 208/230-1-60 | USE UP EXISTING INVENTORY;; USE COM14936; USE UP EXISTING INVENTORY; | View Product |
Export Product Details
Actual Height
15.39
Actual Length/Depth
20
Actual Width
9.7
Brand
Copeland
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
15500
Current (Amps)
10
Discharge Connection Size (OD)
1/2 in.
Frequency (Hz)
60
Horsepower (HP)
1.3
Modulation Type
Fixed Speed
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
16.00
Oil Recharge (Ltr)
0.62
Oil Type
POE (Polyolester Oil)
Phase
1
Protection Type / Housing
Hermatic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
1.3
Shipping Dimension UOM
IN
Shipping Height
13.0
Shipping Length/Depth
20.0
Shipping Weight
53.0
Shipping Weight UOM
LB
Shipping Width
15.0
Speed (RPM)
3,500
Standards
CE,ROHS,TUV,UL
Suction Line Size (OD)
3/4 in
Voltage (VAC)
200-230V
