R410A

COM10849  Superseded

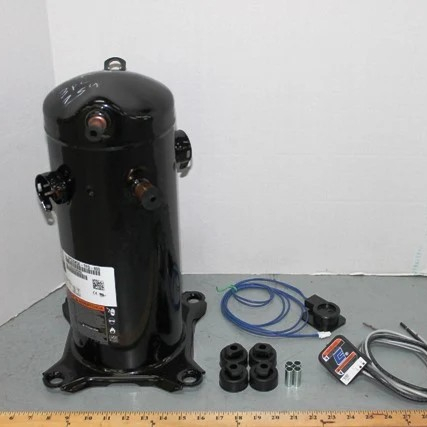

Scroll Compressor: 4.1 Ton (49300 BTuH), Two Stage, R-410A, 4.1 HP, 460V, 50/60 Hz, 3 Phase, 7/8 in. Suction Size, 1/2 in. Discharge Size
Supersessions1 Items
ItemsDescriptionNotesAction
COM14929
SKU Number		COMPRESSOR; SCROLL, ZPS46LXE-TFD-833, R410A, 460-3-60_; USE COM14929;View Product
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Height
16.5
Actual Length/Depth
20
Brand
Alliance
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
49300
Current (Amps)
8.5
Discharge Connection Size (OD)
1/2 in.
Frequency (Hz)
50/60
Horsepower (HP)
4.1
Modulation Type
Two Stage
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
17.20
Oil Recharge (Ltr)
1.06
Oil Type
POE (Polyolester Oil)
Overall Length (In)
9.7
Overall Width (In)
9.7
Phase
3
Protection Type / Housing
Hermatic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
4.1
Shipping Dimension UOM
IN
Shipping Height
14.0
Shipping Length/Depth
20.0
Shipping Weight
76.0
Shipping Weight UOM
LB
Shipping Width
15.0
Speed (RPM)
3,500
Standards
CE,ROHS,TUV,UL
Suction Line Size (OD)
7/8 in.
Voltage (VAC)
460V
