COM10595 Superseded

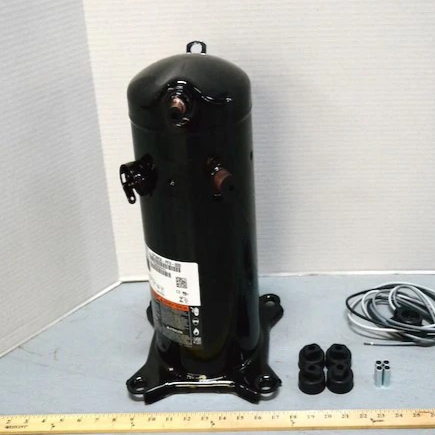

Scroll Compressor, Fixed Speed, 57,000 BTU/h, 4.8 tons, R-410A, 380-460V, Three Phase, 50/60 Hz, 7/8 in. Suction, 1/2 in. Discharge
Login /Create Account to view price and availability.
Supersessions1 Items
| Items | Description | Notes | Action |
|---|---|---|---|
COM14967 SKU Number | COMPRESSOR; SCROLL, ZP57LXE-TFD-800, R-410A, 4.75T 460-3-60 | _; USE COM14967; | View Product |
Export Product Details
Actual Height
17.50"
Actual Length/Depth
9.6999999999999993
Actual Width
9.69"
Brand
Copeland
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
57000
Current (Amps)
9.7
Discharge Connection Size (OD)
1/2
Frequency (Hz)
50/60
Horsepower (HP)
4.75
Modulation Type
Fixed Speed
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
17.70
Oil Recharge (Ltr)
1.06
Oil Type
POE (Polyolester Oil)
Phase
3
Protection Type / Housing
Hermetic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
4.8
Shipping Dimension UOM
IN
Shipping Height
76.00
Shipping Length/Depth
9.70
Shipping Weight
97.00
Shipping Weight UOM
LB
Shipping Width
16.50
Speed (RPM)
3,500
Standards
CE,ROHS,TUV,UL
Sub Brand
Copeland
Suction Line Size (OD)
7/8
Voltage (VAC)
380-460V
