COM10050  Superseded

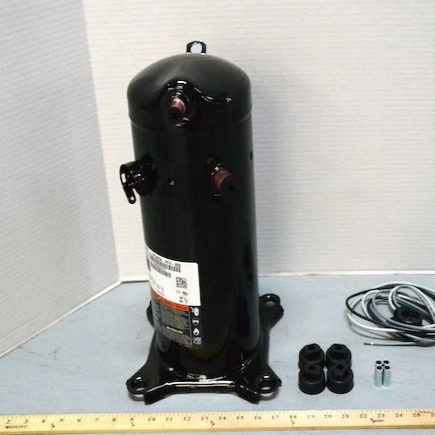

Scroll Compressor, Fixed Speed, 36,000 BTU/h, 3 tons, R-410A, 460V, Three Phase, 50/60 Hz, 7/8 in. Suction, 1/2 in. Discharge
Supersessions1 Items
ItemsDescriptionNotesAction
COM14897
SKU Number		COMPRESSOR; SCROLL, ZP34LXE-TFD-833, R410A, 460-3-60_; USE COM14897;View Product
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Height
16.600000000000001
Actual Length/Depth
9.69
Actual Weight
64.3
Actual Width
9.69
Brand
Alliance
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
36,000
Current (Amps)
6.6
Discharge Connection Size (OD)
0.5
Frequency (Hz)
50/60
Horsepower (HP)
3
Modulation Type
Fixed Speed
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
17.20
Oil Recharge (Ltr)
1.06
Oil Type
POE (Polyolester Oil)
Phase
3
Protection Type / Housing
Hermatic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
3
Shipping Dimension UOM
IN
Shipping Height
42.00
Shipping Length/Depth
37.00
Shipping Weight
190.00
Shipping Weight UOM
LB
Shipping Width
26.00
Speed (RPM)
3,500
Standards
CE,ROHS,TUV,UL
Suction Line Size (OD)
7/8 in.
Voltage (VAC)
460V
