R410A

COM10033  Superseded

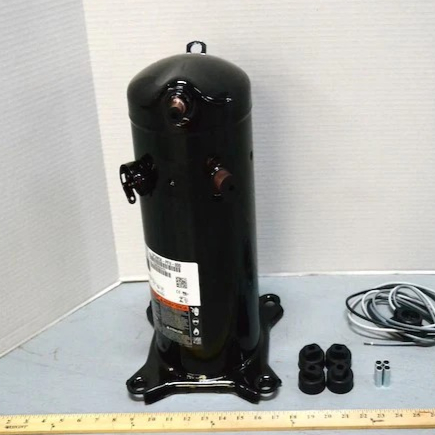

Scroll Compressor, Fixed Speed, 31,200 BTU/h, 2.6 tons, R-410A, 200-230V, Three Phase, 50/60 Hz, 3/4 in. Suction, 1/2 in. Discharge
Show Unit Parts List
Supersessions1 Items
ItemsDescriptionNotesAction
COM14891
SKU Number		COMPRESSOR; SCROLL, ZP29LXE-TF5-833, R410A, 200/230-3-60; 220/200-3-50USE UP EXISTING INVENTORY, NO LONGER AVAILABLE; USE COM14891; USE UP EXISTING INVENTORY, NO LONGER AVAILABLEView Product
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Height
15.3
Actual Length/Depth
15
Brand
Alliance
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
31200
Current (Amps)
11.6
Discharge Connection Size (OD)
1/2
Frequency (Hz)
50/60
Horsepower (HP)
2.6
Modulation Type
Fixed Speed
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
16.00
Oil Recharge (Ltr)
0.62
Oil Type
POE (Polyolester Oil)
Overall Length (In)
9.7
Overall Width (In)
9.7
Phase
3
Protection Type / Housing
Hermatic
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
2.6
Shipping Dimension UOM
IN
Shipping Height
90.00
Shipping Length/Depth
90.00
Shipping Weight
90.00
Shipping Weight UOM
LB
Shipping Width
90.00
Speed (RPM)
3,500
Standards
CE,ROHS,TUV,UL
Suction Line Size (OD)
3/4
Voltage (VAC)
200-230V
