COM09145

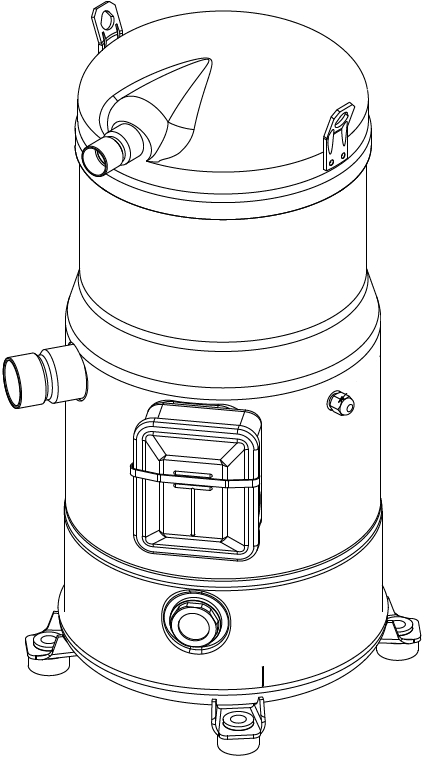

Scroll Compressor, 135,600 Btu/h, 11.3 tons, R-410A, 200-230V, Three Phase, 60 Hz, 1 3/8 in. Suction, 7/8 in. Discharge
Login /Create Account to view price and availability.
Technical Specs
Drawing Numbers
Where Used
Technical Specs
Export Product DetailsBrand
Trane
Connection Type
Brazed, Stub Tube
Cooling Capacity (BtuH)
135600
Discharge Connection Size (OD)
7/8
Frequency (Hz)
60
Mounting Dimensions (L x W)
7.50 x 7.50
Mounting Height (in)
19.44
Oil Type
POE (Polyolester Oil)
Phase
3
Refrigerant Type
R-410A
Refrigeration Capacity (Ton)
11.3
Shipping Dimension UOM
IN
Shipping Height
25.50
Shipping Length/Depth
13.00
Shipping Weight
50.00
Shipping Weight UOM
LB
Shipping Width
12.50
Standards
UL
Suction Line Size (OD)
1-3/8
Voltage (VAC)
200-230V
Drawing Numbers
570010525100
X24021764510
Where Used
YCD420BEK12B3GDB000D000HJB00K0RT00000000
YCD420BEHY1B2DE6000D000HJB01K00050000000
TCH420BE0T9B3EJ40000000H0000K00050000000
YCH420BEK16B3GHA000D00000B00K00050000000
YCD420BELY6A3EHB00C0000H0K00K00000000000
TCH420BE0W8B2DJ50000000H0B00K00050000000
YCD420BEJ16B3GE400C0000HHB00K00050000000
YCH420BEH16A3EH10B00000HJ000K00000000000
YCD420BEH10B3EE10B0D000HJB01K00050000000
YCH420BEM16B3GCA000D000HJB00K00000000000
YCD420BEMY2C3GH50B0D00G00000K00000000000
TCH420BE0Y6B2E4A0000E00HHB02K00000000000
YCD420BEH10B2DE10B00000HJBE1K00T50000000
YCD420BEH10B2EE10B00000HJBE1K00T50000000
YCH420BEMY9B3G7A00C0E00HHB0MK00000000000
TCD420BE0W1B2E6B00C0000HJB01K0R000000000
YCD420BEP16B3G640BC0E0GHHB02K0R050000000
TED420BEB16D3F6B000D00GHJB00K00T00000000
YCD420BELY6B3GC400C0000HHB00K0R050000000
YCD420BEH16B2C2C0BC0000HJ000K0RT00000000
TCH420BE0N1B3FE1000D000HJB00K00000000000
YCD420BEH10B2EE10B0D000HJB01K00T50000000
YCD420BEL12B3GH4000D000H0B00K00000000000
YCD420BEP16B3GHB0BC0E0GHJ00MK00000000000
YCD420BEPT0D3G1C00C000000000K00T00000000
YCH420BEH11B2CD10B00000HHBD0K00T00000000
YCH420BELN7B2DJ60000000HH000K00050000000
YCD420BEP16B3G3B0B0000GHHBE2K0R000000000
YCH420BEPY1B2C970B00000HJ0E2K00T50000000
YCH420BFP17A3GJ40BC0000H0B00K00000000000
TCD420BE012D3FH40000E00H0000K00050000000
TCH420BE0Y1B3FE500C0E00HJB00K0R000000000
YCH420BEMY4B3GE70000000H0B0MK00T00000000
YCH420BEH14B3EE50BC0E00HHB00K00050000000
TCH420BE014B3EE50BC0E00HHB00K00050000000
TCH420BE016D3F1400C0E0G00B00K0RT50000000
TCD420BE017D3FJ50000000H0000K00050000000
TCH420BE0P1B3F3B0B000000HBE0K00T00000000
TCD420BE011B2DC4000000000000K00000000000
YCH420BEM11B2D950B0D000H0B00K0R000000000
YCH420BEHP9D2EJ40B0D000HHB00K00000000000
YCD420BEK19B3EK100C0E00HH000K00T50000000
YCD420BEHY1A2EC70B0D000HH000K00T00000000
TCR420BE0Y2C2E660BC0E00HHB0MK00000000000
YCD420BEK12D2EH70B00000HHBE1K00T00000000
YCH420BELY2B3ED100C00000J000K00000000000
YCD420BEPY6B3GFA0B0D00000B00K00000000000
YCD420BEHT2A3EC10000000HH000K00000000000
YCD420BFJW9B2CJ60000000H0000K00050000000
YCD420BEH11B2DE60B00000HJBE1K00T50000000
YCD420BEKY0B3EG60B0D000HJB0ML0R000000000
YCH420BEPY6B1BCC0BC0E00HHB00K0RT50000000
YCD420BEM16D3E140BC0E0GHHB02K0R050000000
YCF420BEP11B3G310B0D000HHB00KPR050000000
YCF420BEPV6D3G340B00000HJBE2L0R000000000
YCD420BEP19B3G8B000D000HHB00K00000000000
YCD420BEP19B3G9B0B0000GHJ0E0K00T50000000
YCD420BEJY6B3G350B0D000H0B02K0R000000000
YCD420BEH12A3GF6000D00000000K00000000000
TCD420BE010B3FEB0BC0000HH001K00050000000
YCH420BFH11B2CC100C0000HJB00K00050000000
TCD420BE019B3EJ500C0000H0K00K00050000000
YCH420BEM14D3GE500C0E0000B00K00000000000
YCH420BEP16D3EF60BC0000HHB00K00050000000
YCH420BEJ11B2D950B0D000H0B00K0R000000000
YCH420BFH16B3EEC0B0D000HJB00K0R000000000
YCD420BEP12D3E1B00C0E00H0B0MK00050000000
TED420BEB19D2E95000000G00BE0K0RT50000000
TCD420BE0Y6B2E3A0B0D000HJB0MK0RT00000000
YCD420BEH10B2CE10B00000HJBE1K00T50000000
YCH420BFL16A3ED6000D000HJ000K00T50000000
YCD420BEMY0B2EE6000D000HHB00K0RT50000000
YCH420BEPW6B2DHD0000000HH0E2L0RT50000000
YCD420BEM10D3GE400C0000HHB0MK00T50000000
YCH420BEP16B3G3A00C0000HJB00K00000000000
YCD420BEH10B2CE10B0D000HJB01K00T50000000
YCF420BEHW8B3EJ60BC000000B00K00T00000000
TED420BEB19B3F940B00E0GHHB0MK00000000000
YCD420BEK16B2DHB0000000HJBE0K0R000000000
YCH420BEH11D3GE100C000000000K00000000000
YCH420BEKY4B3GH40B0D000HHB0MK00050000000
YCH420BELY1B3GLD0BC0000HHB02K00050000000
YCD420BEP11B2DL6000D000H0B02K0R000000000
TCD420BE012B3FG50B00000HHBE0K00050000000
TCD420BE016B3F65000D000HJB00K0R050000000
YCD420BEH16B2CH10B0D000HHB00K00T50000000
YCH420BEHY0B3E1D0B00E00HJB02L0RT50000000
YCD420BEH17B3GJ4000D000HHB00K00050000000
TCD420BE011D2EHB0B0D000HHB02K0R000000000
YCH420BEM11B3EC400C0000HHB00K0R000000000
YCD420BEL12C2DE100C0E00H0000K00000000000
YCD420BEJ16B3EH5000D0000HB00K00000000000
YCD420BEL14D3G1A000000GH0BD2K00050000000
TCD420BE0N0B3FBB0BC0000HJ00MK00000000000
YCD420BEL16B2EE4000D000H0B00K0R000000000
YCH420BFH12B2DC600C0000H0000K00000000000
TCH420BF017D3FJ500C0E00HJB00K00050000000
YCH420BEM16D3GDA000D000HHB0MK0R000000000
YCH420BFL19D3GJ70000000H0B00K0R050000000
YCD420BEMY6B3GG50B00000HJBDMK00000000000
