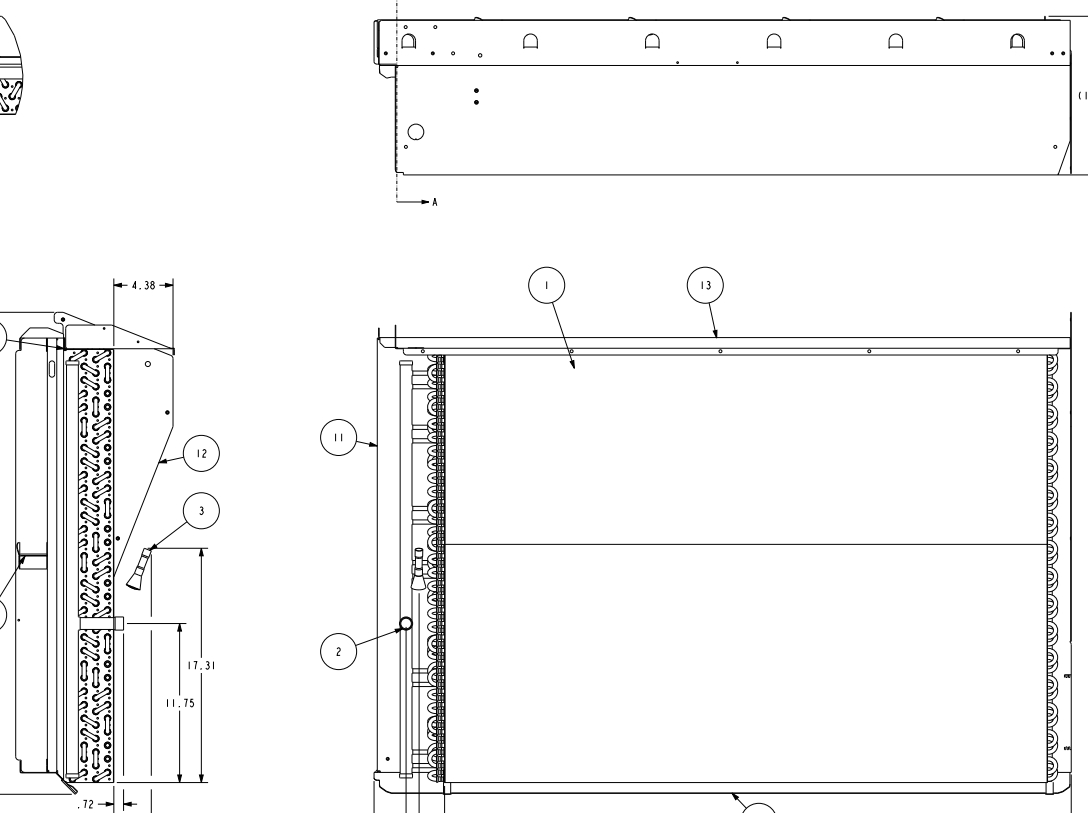

Direct Expansion (DX) Evaporator Coils

COL16365

DX Evaporator Coil: 32 x 44.5 in, 4 Rows, 1 Circuits, No Coating, TXV Included, No Coating, 32 x 44.5 in
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Length/Depth
53
Brand
Trane
Casing Material
Steel
Circuiting Option
Half
Coating
No
Coil Configuration
Flat
Coil Type
Evaporator
Connection Type
Brazed
Fin Height (in)
32
Fin Length (in)
44.5
Fin Material
Aluminum
Fin Thickness (in)
0.0042-0.0045
Fin Type
Lanced
Fins Per Inch (FPI)
16
Header Material
Copper
Number of Circuits
1
Number of Rows
4
Overall Coil Height (in)
35.61
Overall Coil Length (in)
11.72
Overall Coil Width (in)
51.53
Refrigerant Type
R-410A
Return Connection Size (OD)
3/4
Shipping Dimension UOM
IN
Shipping Height
30.0
Shipping Length/Depth
53.0
Shipping Weight
184.0
Shipping Weight UOM
LB
Shipping Width
50.0
Supply Connection Size (OD)
1/2
Tube Diameter (OD)
5/16
Tube Material
Copper
Tube Size (In)
5/16
TXV Included?
True
