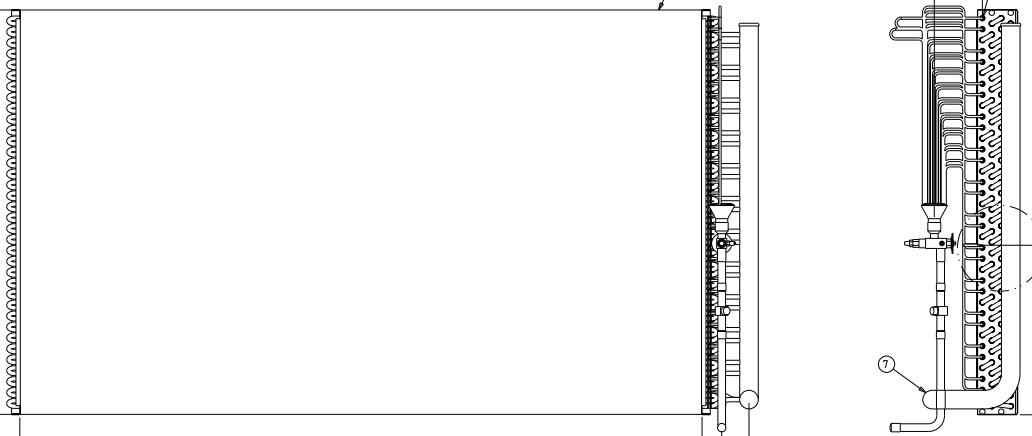

Direct Expansion (DX) Evaporator Coils

COL06974

DX Evaporator Coil: 46.3 x 78 in, 4 Rows, 1 Circuits, No Coating, No TXV, No Coating, 46.3 x 78 in
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Height
35
Actual Length/Depth
82
Actual Width
50
Airflow Direction
LH/RH
Brand
Trane
Casing Material
Steel
Circuiting Option
Half
Coating
No
Coil Configuration
Flat
Coil Type
Evaporator
Connection Type
Brazed
Distributor Included?
Yes
Fin Height (in)
46.25
Fin Length (in)
78.12
Fin Material
Aluminum
Fin Thickness (in)
0.0053
Fin Type
Wavy 3B
Header Material
Copper
Number of Circuits
1
Number of Rows
4
Overall Coil Height (in)
46.25
Overall Coil Length (in)
81.62
Overall Coil Width (in)
4.6
Return Connection Size (OD)
1/2
Shipping Dimension UOM
IN
Shipping Height
27.0
Shipping Length/Depth
92.0
Shipping Weight
600.0
Shipping Weight UOM
LB
Shipping Width
56.0
Supply Connection Size (OD)
7/8
Tube Diameter (OD)
1/2
Tube Material
Copper
Tube Size (In)
1/2
TXV Included?
False
