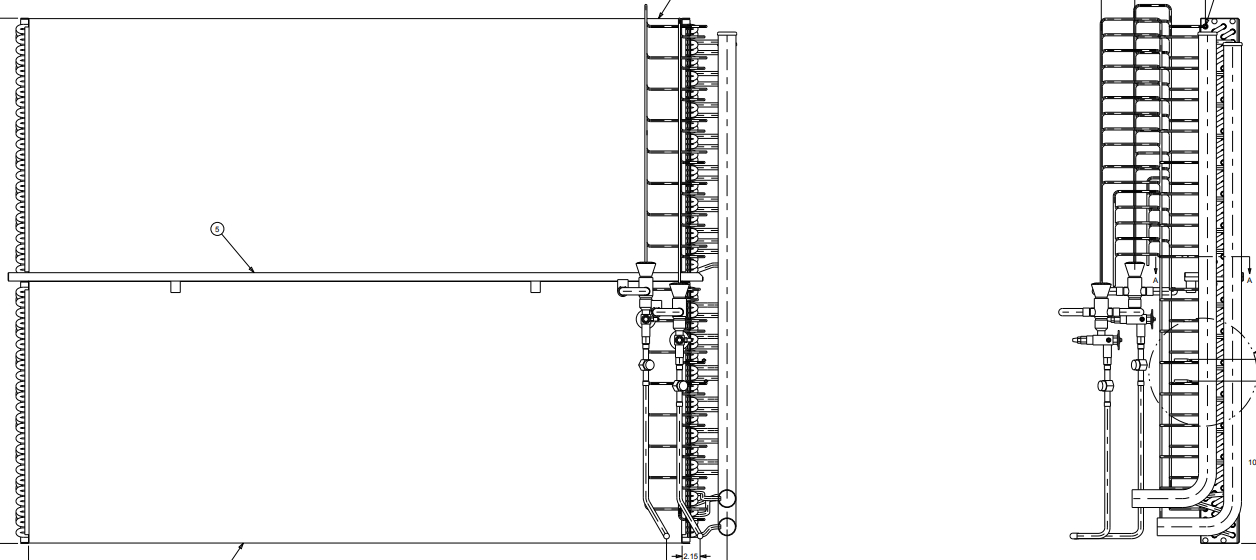

Direct Expansion (DX) Evaporator Coils

COL04812

DX Evaporator Coil: 62.5 x 78 in, 4 Rows, 2 Circuits, No Coating, No TXV, No Coating, 62.5 x 78 in
Technical Specs
Drawing Numbers
Where Used
Export Product Details
Actual Length/Depth
196
Airflow Direction
RH
Casing Material
Steel
Circuiting Option
Half
Coating
No
Coil Configuration
Flat
Coil Type
Evaporator
Connection Type
Brazed
Distributor Included?
Yes
Fin Height (in)
62.5
Fin Length (in)
78
Fin Material
Aluminum
Fin Thickness (in)
0.0053
Fin Type
Wavy 3B
Fins Per Inch (FPI)
12
Header Material
Copper
Nominal Cooling Capacity (Tons)
40
Number of Circuits
2
Number of Rows
4
Overall Coil Height (in)
62.75
Overall Coil Length (in)
87
Overall Coil Width (in)
19.658
Refrigerant Type
R-22
Return Connection Size (OD)
2-1/8
Shipping Dimension UOM
IN
Shipping Height
34.0
Shipping Length/Depth
93.0
Shipping Weight
931.0
Shipping Weight UOM
LB
Shipping Width
94.0
Supply Connection Size (OD)
5/8
Tube Diameter (OD)
1/2
Tube Material
Copper
Tube Size (In)
1/2
TXV Included?
False
